Deposit locations - mine and mineral occurances

The most important dataset for this workflow is the currently known locations of mineral occurences. Using the data we already know about these known-deposits we will build a model to predict where future occurences will be.

# For working with shapefiles (packaged is called pyshp)
import shapefile
# For working with dataframes
import pandas as pd

# Set the filename
mineshape="data/MinesMinerals/mines_and_mineral_occurrences_all.shp"

# Set shapefile attributes and assign
sf = shapefile.Reader(mineshape)
fields = [x[0] for x in sf.fields][1:]
records = sf.records()
shps = [s.points for s in sf.shapes()]

# Write into a dataframe for easy use
df = pd.DataFrame(columns=fields, data=records)

View the metadata of the South Australian all mines and mineral deposits to get a better understanding for what features we could use as a target.

#See what the dataframe looks like
print(df.columns)

#For clean printing to html drop columns that contains annoying / and \ chars.
#And set max columns
pd.options.display.max_columns = 8
df.drop(columns=['REFERENCE','O_MAP_SYMB'])

Index(['MINDEP_NO', 'DEP_NAME', 'REFERENCE', 'COMM_CODE', 'COMMODS',
       'COMMOD_MAJ', 'COMM_SPECS', 'GCHEM_ASSC', 'DISC_YEAR', 'CLASS_CODE',
       'OPER_TYPE', 'MAP_SYMB', 'STATUS_VAL', 'SIZE_VAL', 'GEOL_PROV',
       'DB_RES_RVE', 'DB_PROD', 'DB_DOC_IMG', 'DB_EXV_IMG', 'DB_DEP_IMG',
       'DB_DEP_FLE', 'COX_CLASS', 'REG_O_CTRL', 'LOC_O_CTRL', 'LOC_O_COM',
       'O_LITH_CDE', 'O_LITH01', 'O_STRAT_NM', 'H_LITH_CDE', 'H_LITH02',
       'H_STRAT_NM', 'H_MAP_SYMB', 'EASTING', 'NORTHING', 'ZONE', 'LONGITUDE',
       'LATITUDE', 'SVY_METHOD', 'HORZ_ACC', 'SRCE_MAP', 'SRCE_CNTRE',
       'COMMENTS', 'O_MAP_SYMB'],
      dtype='object')

#We are building a model to target South Australia, so load in a map of it.
gawlshape="data/SA/SA_STATE_POLYGON_shp"
shapeRead = shapefile.Reader(gawlshape)
shapes  = shapeRead.shapes()

#Save the boundary xy pairs in arrays we will use throughout the workflow
xval = [x[0] for x in shapes[1].points]
yval = [x[1] for x in shapes[1].points]

# Subset the data, for a single Mineral target
commname='Mn'

#Pull out all the occurences of the commodity and go from there
comm=df[df['COMM_CODE'].str.contains(commname)]
comm=comm.reset_index(drop=True)
print("Shape of "+ commname, comm.shape)

# Can make further subsets of the data here if needed
#commsig=comm[comm.SIZE_VAL!="Low Significance"]
#comm=comm[comm.SIZE_VAL!="Low Significance"]
#comm=comm[comm.COX_CLASS == "Olympic Dam Cu-U-Au"]
#comm=comm[(comm.lon<max(xval)) & (comm.lon>min(xval)) & (comm.lat>min(yval)) & (comm.lat<max(yval))]

Shape of Mn (115, 43)

# For plotting
import matplotlib.pyplot as plt

fig = plt.figure(figsize=(8,8))
ax = plt.axes()
ax.plot(df.LONGITUDE,df.LATITUDE,'b.',label="All Mineral Deposits")
ax.plot(comm.LONGITUDE,comm.LATITUDE,'yx',label=commname+" Deposits")

ax.plot(xval,yval,'grey',linestyle='--',linewidth=1,label='SA')
#ax.plot(comm.LONGITUDE, comm.LATITUDE, marker='o', linestyle='',markersize=5, color='y',label=commname+" Deposits")

plt.xlim(128.5,141.5)
plt.ylim(-38.5,-25.5)
plt.legend(loc=3)

plt.show()

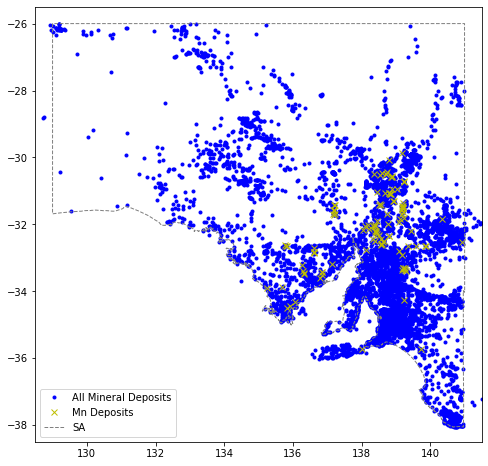

png

Resistivity xyz data

#Read in the data
data_res=pd.read_csv("data/AusLAMP_MT_Gawler_25.xyzr",
                     sep=',',header=0,names=['lat','lon','depth','resistivity'])
data_res

This data is Lat-Lon spatial location and the value of the feature at that location.

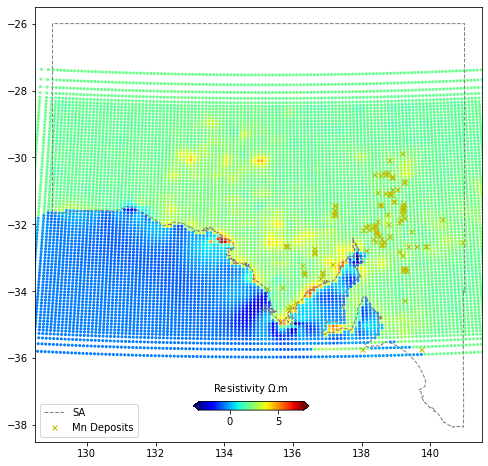

fig = plt.figure(figsize=(8,8))
ax = plt.axes()
im=ax.scatter(data_res.lon,data_res.lat,s=4,c=data_res.resistivity,cmap="jet")
ax.plot(xval,yval,'grey',linestyle='--',linewidth=1,label='SA')
ax.plot(comm.LONGITUDE, comm.LATITUDE, marker='x', linestyle='',markersize=5, color='y',label=commname+" Deposits")

plt.xlim(128.5,141.5)
plt.ylim(-38.5,-25.5)
plt.legend(loc=3)

cbaxes = fig.add_axes([0.40, 0.18, 0.2, 0.015])
cbar = plt.colorbar(im, cax = cbaxes,orientation="horizontal",extend='both')
cbar.set_label('Resistivity $\Omega$.m', labelpad=10)
cbar.ax.xaxis.set_label_position('top')

plt.show()

png

Faults and dykes vector polylines

# For dealing with arrays
import numpy as np

#Get fault data neo
faultshape="data/Faults/Faults.shp"
shapeRead = shapefile.Reader(faultshape)
shapes  = shapeRead.shapes()
Nshp    = len(shapes)

faultsNeo=[]
for i in range(0,Nshp):
    for j in shapes[i].points:
        faultsNeo.append([j[0],j[1]])
faultsNeo=np.array(faultsNeo)
faultsNeo

array([[133.46269605, -27.41825034],
       [133.46770683, -27.42062991],
       [133.4723624 , -27.42259841],
       ...,
       [138.44613353, -35.36560605],
       [138.44160669, -35.36672662],
       [138.43805501, -35.36793484]])

This data is just a Lat-Lon location. Think how we can use this in a model.

fig = plt.figure(figsize=(8,8))
ax = plt.axes()
plt.plot(faultsNeo[:,0],faultsNeo[:,1],'.',markersize=0.1,label="Neoproterozoic-Faults")
ax.plot(xval,yval,'grey',linestyle='--',linewidth=1,label='SA')
ax.plot(comm.LONGITUDE, comm.LATITUDE, marker='x', linestyle='',markersize=5, color='y',label=commname+" Deposits")

plt.xlim(128.5,141.5)
plt.ylim(-38.5,-25.5)
plt.legend(loc=3)

plt.show()

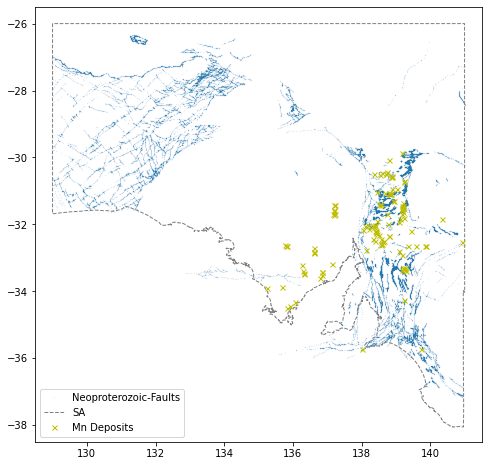

png

Netcdf formatted raster grids - geophysics

# For timing events
import time
# For making grids and reading netcdf data
import scipy
import scipy.io

#Define a function to read the netcdf files
def readnc(filename):
    tic=time.time()
    rasterfile=filename
    data = scipy.io.netcdf_file(rasterfile,'r',mmap=False)
    xdata=data.variables['lon'][:]
    ydata=data.variables['lat'][:]
    zdata=np.array(data.variables['Band1'][:])
    data.close()

    toc=time.time()
    print("Loaded", rasterfile, "in", f'{toc-tic:.2f}s')
    print("Spacing x", f'{xdata[2]-xdata[1]:.2f}',
          "y", f'{ydata[2]-ydata[1]:.2f}',
          "Shape:", np.shape(zdata), "Min x:", np.min(xdata), "Max x:", np.max(xdata),
          "Min y:", np.min(ydata), f'Max y {np.max(ydata):.2f}')

    return(xdata,ydata,zdata,np.min(xdata),np.min(ydata),xdata[2]-xdata[1],ydata[2]-ydata[1])

# Digital Elevation Model
x1,y1,z1,originx1,originy1,pixelx1,pixely1 = readnc("data/sa-dem.nc")
# Total Magnetic Intensity
x2,y2,z2,originx2,originy2,pixelx2,pixely2 = readnc("data/sa-mag-tmi.nc")
# Gravity
x3,y3,z3,originx3,originy3,pixelx3,pixely3 = readnc("data/sa-grav.nc")

Loaded data/sa-dem.nc in 0.01s
Spacing x 0.01 y 0.01 Shape: (1208, 1201) Min x: 129.005 Max x: 141.005 Min y: -38.065 Max y -25.99
Loaded data/sa-mag-tmi.nc in 0.00s
Spacing x 0.01 y 0.01 Shape: (1208, 1201) Min x: 129.005 Max x: 141.005 Min y: -38.065 Max y -25.99
Loaded data/sa-grav.nc in 0.01s
Spacing x 0.01 y 0.01 Shape: (1208, 1201) Min x: 129.005 Max x: 141.005 Min y: -38.065 Max y -25.99

fig = plt.figure(figsize=(8,8))
ax = plt.axes()
im=plt.pcolormesh(x1,y1,z1,cmap='Greys',shading='auto')
ax.plot(xval,yval,'grey',linestyle='--',linewidth=1,label='SA')
ax.plot(comm.LONGITUDE, comm.LATITUDE, marker='x', linestyle='',markersize=5, color='y',label=commname+" Deposits")

plt.xlim(128.5,141.5)
plt.ylim(-38.5,-25.5)
plt.legend(loc=3)

cbaxes = fig.add_axes([0.40, 0.18, 0.2, 0.015])
cbar = plt.colorbar(im, cax = cbaxes,orientation="horizontal",extend='both')
cbar.set_label('DEM (m)', labelpad=10)
cbar.ax.xaxis.set_label_position('top')

plt.show()

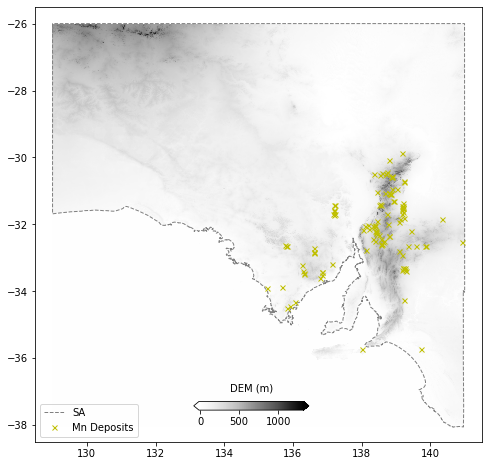

png

These data are raster grids. Essentially Lat-Lon-Value like the XYZ data, but represented in a different format.

Categorical Geology in vector polygons

#Archean basement geology
geolshape=shapefile.Reader("data/Archaean_Early_Mesoprterzoic_polygons_shp/geology_archaean.shp")

recsArch   = geolshape.records()
shapesArch  = geolshape.shapes()

# Print the field names in the shapefile
for i,field in enumerate(geolshape.fields):
    print(i-1,field[0])

-1 DeletionFlag
0 MAJORSTRAT
1 SG_DESCRIP
2 MAPUNIT
3 SG_PROVINC
4 DOMAIN
5 AGE
6 SEQUSET
7 PRIMARYAGE
8 OROGENYAGE
9 INHERITAGE
10 STRATNO
11 STRATNAME
12 STRATDESC
13 GISCODE
14 SUBDIVNAME
15 SUBDIVSYMB
16 PROVINCE
17 MAXAGE
18 MAXMOD
19 MAXMETH
20 MINAGE
21 MINMOD
22 MINMETH
23 GLCODE

fig = plt.figure(figsize=(8,8))
ax = plt.axes()

#index of the geology unit #4 #10 #12
geoindex = 4
#Gather all the unique Major Geology unit numbers
labs=[]
for i in recsArch:
    labs.append(i[geoindex])

geols = list(set(labs))

# Create a unique color for each geological unit label
color = plt.cm.tab20(np.linspace(0, 1, len(geols)))
cdict={}
for i, geol in enumerate(geols):
    cdict.update({geol:color[i]})

#Plot each of the geology polygons
legend1=[]
for i in range(len(shapesArch)):
    boundary = shapesArch[i].points
    xs = [x for x, y in shapesArch[i].points]
    ys = [y for x, y in shapesArch[i].points]
    c = cdict[recsArch[i][geoindex]]
    l1 = ax.fill(xs,ys,c=c,label=recsArch[i][geoindex])
    legend1.append(l1)

#Plot the extra stuff
l2 = ax.plot(xval,yval,'grey',linestyle='--',linewidth=1,label='SA')
l3 = ax.plot(comm.LONGITUDE, comm.LATITUDE,
        marker='s', markeredgecolor='k', linestyle='',markersize=4, color='y',
        label=commname+" Deposits")

#Todo: Split the legends
#ax.legend([l2,l3],['SA',commname+" Deposits"],loc=3)

#Legend without duplicate values
handles, labels = ax.get_legend_handles_labels()
unique = [(h, l) for i, (h, l) in enumerate(zip(handles, labels)) if l not in labels[:i]]
ax.legend(*zip(*unique), bbox_to_anchor = (1.02, 1.01), ncol=3)

plt.xlim(128.5,141.5)
plt.ylim(-38.5,-25.5)
#plt.legend(loc=3) #bbox_to_anchor = (1.05, 0.6))

plt.show()

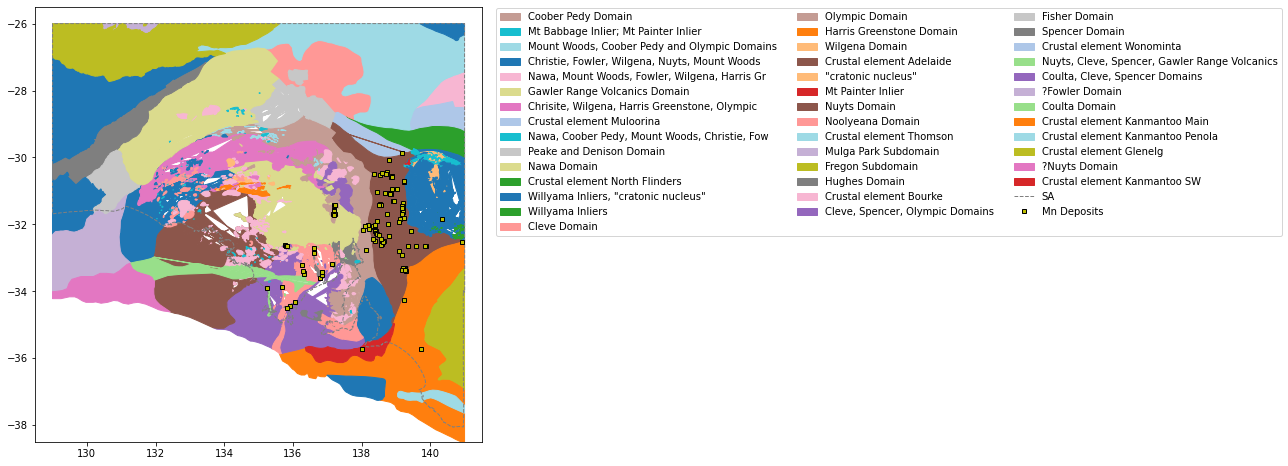

png

Take a moment to appreciate the various methods you have used just to load the data!

Now we need to think about what we actually want to achieve? What is our goal here? This will determine what kind of data analysis/manipulation we need to make here. Consider the flow diagram for choosing the right machine learning method.

Resistivity

# For making KD Trees
import scipy.spatial

# Define a function which "coregisters" a point from a bunch of other points.
def coregPoint(tree,point,region,retval='index'):
    '''
    Finds the nearest neighbour to a point from a bunch of other points
    tree - a scipy CKTree to search for the point over
    point - array([longitude,latitude])
    region - integer, same units as data
    '''
    dists, indexes = tree.query(point,k=1,distance_upper_bound=region)

    if retval=='index':
        return (indexes)
    elif retval=='dists':
        return(dists)


# Find the values of the resetivity grid for each lat/lon deposit location.

# Make a search-tree of the point-pairs for fast lookup of nearest matches
treeres = scipy.spatial.cKDTree(np.c_[data_res.lon,data_res.lat])

# Perform the search for each point
indexes = td1.apply(
    lambda x: coregPoint(treeres,np.array([x.LONGITUDE, x.LATITUDE]),1,retval='index'), axis=1)

td1['res'] = data_res.loc[indexes].resistivity.values
td1

Faults

#Same for the fault data
# but this time we get the "distance to the point", rather than the value at that point.
treefaults = scipy.spatial.cKDTree(faultsNeo)

dists = td1.apply(
    lambda x: coregPoint(treefaults,np.array([x.LONGITUDE, x.LATITUDE]),100,retval='dists'), axis=1)

td1['faults'] = dists
td1

Geophysics

# Define a function which "coregisters" a point within a raster.
def get_coords_at_point(originx,originy,pixelx,pixely,lon,lat):
    '''
    Given a point in some coordinate reference (e.g. lat/lon)
    Find the closest point to that in an array (e.g. a raster)
    and return the index location of that point in the raster.
    INPUTS
        "output from "gdal_data.GetGeoTransform()"
    originx: first point in first axis
    originy: first point in second axis
    pixelx: difference between x points
    pixely: difference between y points

    lon: x/row-coordinate of interest
    lat: y/column-coordinate of interest

    RETURNS
    col: x index value from the raster
    row: y index value from the raster
    '''
    row = int((lon - originx)/pixelx)
    col = int((lat - originy)/pixely)

    return (col, row)


# Pass entire array of latlon and raster info to us in get_coords_at_point
def rastersearch(latlon,raster,originx,originy,pixelx,pixely):
    zlist=[]
    for lon,lat in zip(latlon.LONGITUDE,latlon.LATITUDE):
        try:
            zlist.append(raster[get_coords_at_point(originx,originy,pixelx,pixely,lon,lat)])
        except:
            zlist.append(np.nan)

    return(zlist)

td1['dem'] = rastersearch(td1,z1,originx1,originy1,pixelx1,pixely1)
td1['mag'] = rastersearch(td1,z2,originx2,originy2,pixelx2,pixely2)
td1['grav'] = rastersearch(td1,z3,originx3,originy3,pixelx3,pixely3)

td1

# Check we got it right.
# Plot a grid, and our interrogated points

fig = plt.figure(figsize=(8,8))
ax = plt.axes()
im=plt.pcolormesh(x3,y3,z3,cmap='jet',shading='auto',vmin=min(td1.grav),vmax=max(td1.grav))
#ax.plot(xval,yval,'grey',linestyle='--',linewidth=1,label='SA')
#ax.plot(comm.LONGITUDE, comm.LATITUDE, marker='o', linestyle='',markersize=5, color='y',label=commname+" Deposits")

ax.scatter(td1.LONGITUDE, td1.LATITUDE, s=20, c=td1.grav,
           label=commname+" Gravity",cmap='jet',vmin=min(td1.grav),vmax=max(td1.grav),edgecolors='white')

plt.xlim(138,140)
plt.ylim(-32,-30)
plt.legend(loc=3)

cbaxes = fig.add_axes([0.40, 0.18, 0.2, 0.015])
cbar = plt.colorbar(im, cax = cbaxes,orientation="horizontal",extend='both')
cbar.set_label('Gravity (gal)', labelpad=10)
cbar.ax.xaxis.set_label_position('top')

plt.show()

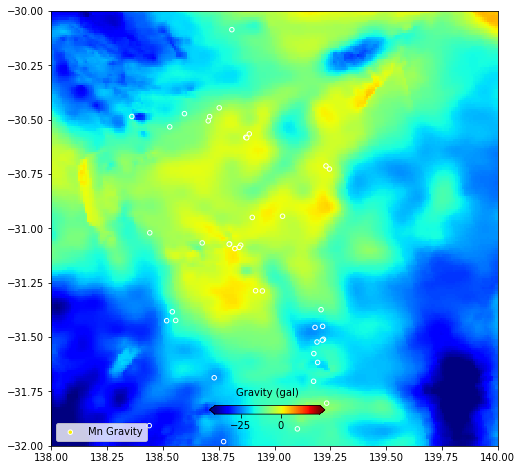

png

Geology

# For dealing with shapefile components
from shapely.geometry import Point
from shapely.geometry import shape

#Define a function to find what polygon a point lives inside (speed imporivements can be made here)
def shapeExplore(lon,lat,shapes,recs,record):
    #'record' is the column index you want returned
    for i in range(len(shapes)):
        boundary = shapes[i]
        if Point((lon,lat)).within(shape(boundary)):
            return(recs[i][record])
    #if you have been through the loop with no result
    return('-9999')

%%time
geoindex = 4
td1['geol']=td1.apply(lambda x: shapeExplore(x.LONGITUDE, x.LATITUDE, shapesArch,recsArch,geoindex), axis=1)

CPU times: user 9.63 s, sys: 11.8 ms, total: 9.64 s
Wall time: 9.65 s

td1

Congrats, you now have an ML dataset ready to go!

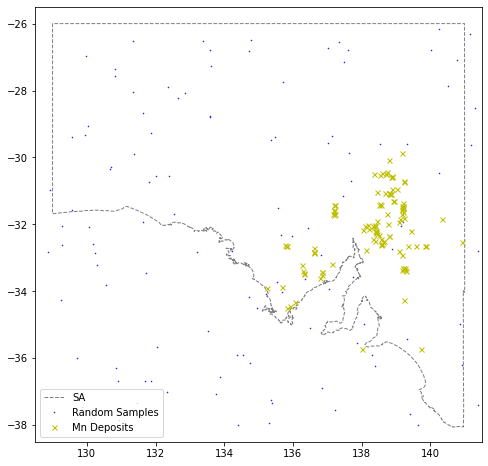

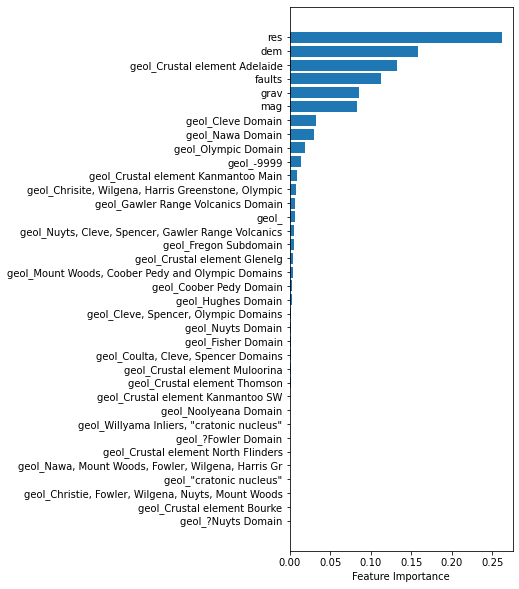

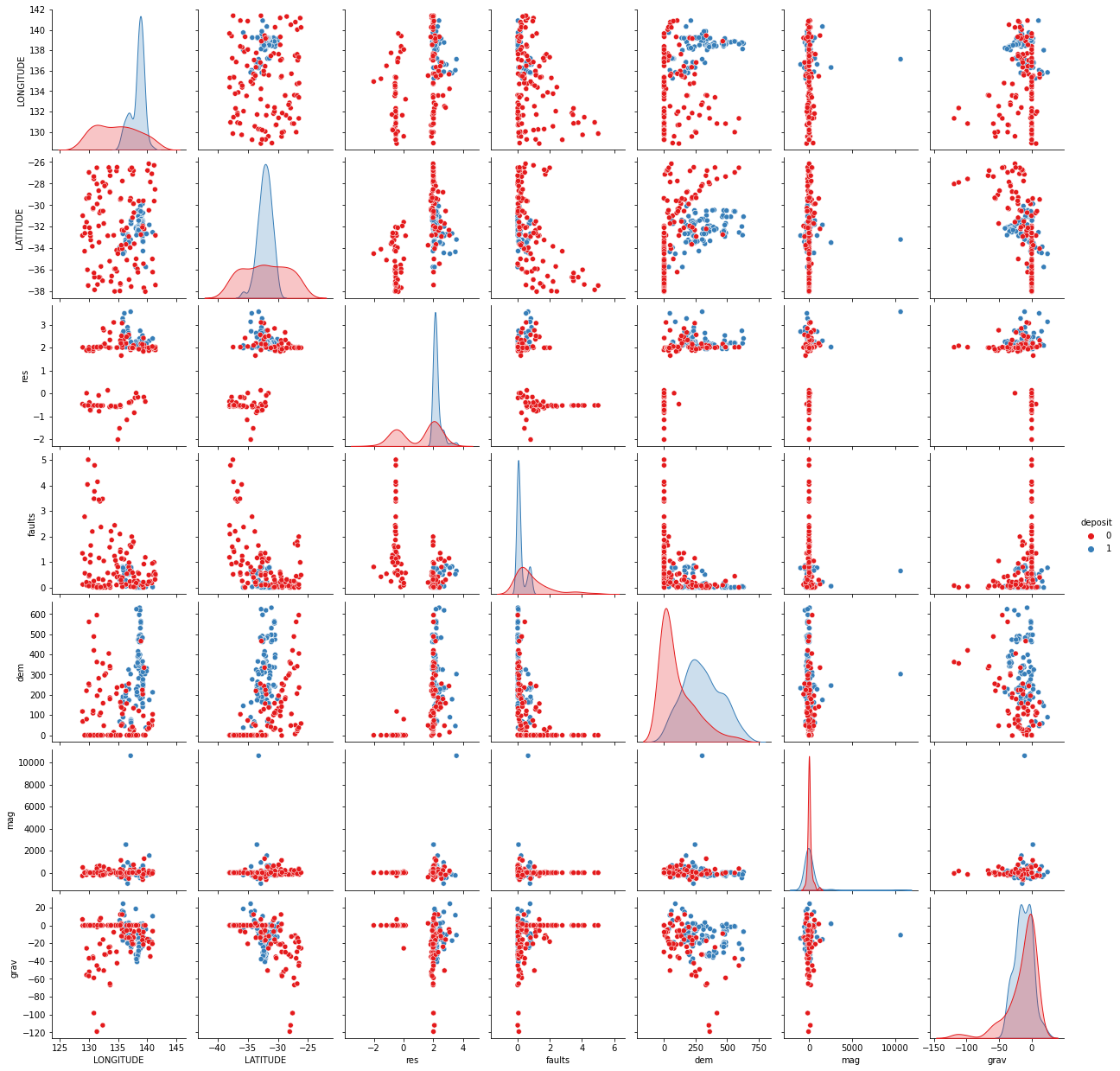

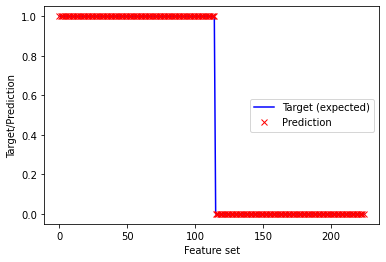

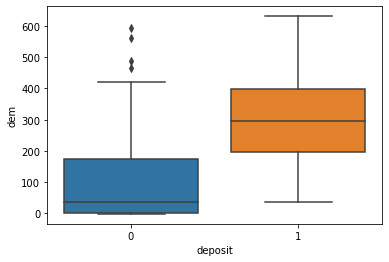

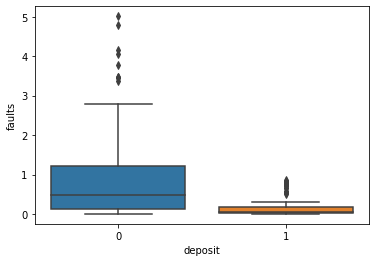

Almost… but what is the target? Let’s make a binary classifier.
