Running a custom pipeline on HPC

Learning objectives

• Execute a custom Nextflow pipeline on HPC, applying system-specific configurations
• Diagnose and troubleshoot workflow failures by inspecting logs and files in work directories
• Construct a reproducible configuration file for an HPC environment.

Testing and developing in the right environment

Containers For the workshop, we have pre-pulled containers and use them from the cache. In real-world scenarios, pulling containers may take time. Consideration to whether your HPC system allows internet access from compute nodes is also important.

Running the Nextflow head job As our test data is small and the workflow runs quickly, we will be running the Nextflow run command directly on the login nodes. On HPC, this is neither permitted nor feasible for real data analyses, as HPC login nodes typically kill long-running commands.

We recommend using interactive jobs for testing and debugging workflows directly on compute nodes instead of the login nodes. This has the added benefit of testing in the same hardware environment as the final workflow will run.

Some HPCs have dedicated workflow queues/partitions to which the Nextflow head job can be submitted. These nodes are set up to support long-running jobs with low resource requirements, as workflow processes that require higher resources are each submitted to different queues/partitions based on the resources specified within the custom infrastructure config.

See the recommendations on running the head job for Gadi and Setonix.

It is useful to develop your pipelines using a small, representative subset of your data. This allows you:

• Rapidly iterate your workflow design
• Validate environment and software set up
• Tune pipeline configuration without burning service units
• Reduce queue wait times
• Estimate basic performance characteristics of each process

2.1.1 Run without configuration

We will start configuring our custom pipeline with using a subset of raw reads from a single individual (NA1287) in our sample cohort. This is a good proxy for the other two samples as they are all of the same input data type and about the same size. Once we’re confident everything works as intended, we will scale up to run on the full set of samples.

Let's start by running the pipeline out of the box to identify what we need to configure:

Exercise: Run out of the box

• Load the Nextflow module, following the same method we learnt yesterday:

Gadi (PBS Pro)Setonix (Slurm)

module load nextflow/24.04.5

module load nextflow/24.10.0

• Run your Nextflow command out of the box:

Gadi (PBS Pro)Setonix (Slurm)

nextflow run main.nf

Output

N E X T F L O W   ~  version 24.04.5

Launching `main.nf` [suspicious_almeida] DSL2 - revision: 5e5c4f57e0

executor >  local (2)
[a3/a6da06] FASTQC (fastqc on NA12877) [100%] 1 of 1, failed: 1 ✘
[16/860647] ALIGN (1)                  [100%] 1 of 1, failed: 1 ✘
[-        ] GENOTYPE                   -
[-        ] JOINT_GENOTYPE             -
[-        ] STATS                      -
[-        ] MULTIQC                    -
ERROR ~ Error executing process > 'FASTQC (fastqc on NA12877)'

Caused by:
Process `FASTQC (fastqc on NA12877)` terminated with an error exit status (127)


Command executed:

mkdir -p "fastqc_NA12877"
fastqc -t 1 --outdir "fastqc_NA12877" --format fastq NA12877_chr20-22.R1.fq.gz NA12877_chr20-22.R2.fq.gz

Command exit status:
127

Command output:
(empty)

Command error:
.command.sh: line 3: fastqc: command not found

Work dir:
/scratch/project/username/nextflow-on-hpc-materials/part2/work/a3/a6da061dd65d454add3f000923235d

Tip: when you have fixed the problem you can continue the execution adding the option `-resume` to the run command line

-- Check '.nextflow.log' file for details

nextflow run main.nf

Output

 N E X T F L O W   ~  version 24.10.0

Launching `main.nf` [trusting_brown] DSL2 - revision: 5e5c4f57e0

executor >  local (2)
executor >  local (2)
[e6/21a49e] FASTQC (fastqc on NA12877) [100%] 1 of 1, failed: 1 ✘
[68/bda517] ALIGN (1)                  [100%] 1 of 1, failed: 1 ✘
[-        ] GENOTYPE                   -
[-        ] JOINT_GENOTYPE             -
[-        ] STATS                      -
[-        ] MULTIQC                    -
ERROR ~ Error executing process > 'ALIGN (1)'

Caused by:
Process `ALIGN (1)` terminated with an error exit status (127)


Command executed:

bwa mem -t 1 -R "@RG\tID:NA12877\tPL:ILLUMINA\tPU:NA12877\tSM:NA12877\tLB:NA12877\tCN:SEQ_CENTRE" ref/Hg38.subsetchr20-22.fasta NA12877_chr20-22.R1.fq.gz NA12877_chr20-22.R2.fq.gz | samtools sort -O bam -o NA12877.bam
samtools index NA12877.bam

Command exit status:
127

Command output:
(empty)

Command error:
.command.sh: line 2: samtools: command not found
.command.sh: line 2: bwa: command not found

Work dir:
/scratch/project/username/nextflow-on-hpc-materials/part2/work/68/bda517eeaa47f5ba24a9c401bdeb0e

Tip: view the complete command output by changing to the process work dir and entering the command `cat .command.out`

-- Check '.nextflow.log' file for details

Why did it fail?

Use the output printed to your screen, .nextflow.log file in your current directory, as well as the .command.log, .command.err, and .exitcode files in the work directory of the failed task to identify what caused your workflow run to fail.

Answer

Our run stopped because one or more processes failed. Exit status 127 in Linux environments means your system was not able to find the command referenced in the process. This suggests the software is not available in our environment.

2.1.2 Enabling containers

All our process modules specify a container to run inside. This can only happen if Singularity is explicitly enabled in our configuration. Let's enable this in our system-specific configuration files and attempt to run again:

Exercise: Enable Singularity

• Load the Singularity module, following the same method we learnt yesterday:

Gadi (PBS Pro)Setonix (Slurm)

module load singularity

module load singularity/4.1.0-slurm

• Add the following to your system-specific config file that you can find in config/. Remember, we have already enabled profiles in our nextflow.config, so no need to edit that file.

Gadi (PBS Pro)Setonix (Slurm)

config/pbspro.sh

process {
    // Load the globally installed singularity module before running any process
    module = 'singularity'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

config/slurm.config

process {
    // Load the globally installed singularity/4.1.0-slurm module before running any process
    module = 'singularity/4.1.0-slurm'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PAWSEY_PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

• Run your updated Nextflow command:

Gadi (PBS Pro)Setonix (Slurm)

nextflow run main.nf -profile pbspro

Output

Output

 N E X T F L O W   ~  version 24.04.5

Launching `main.nf` [big_picasso] DSL2 - revision: e34a5e5f9d

executor >  local (6)
[c3/dda9c5] FASTQC (fastqc on NA12877) | 1 of 1 ✔
[b4/210425] ALIGN (1)                  | 1 of 1 ✔
[89/5b15d9] GENOTYPE (1)               | 1 of 1 ✔
[7d/a18133] JOINT_GENOTYPE (1)         | 1 of 1 ✔
[3f/1db7ee] STATS (1)                  | 1 of 1 ✔
[be/fd841e] MULTIQC                    | 1 of 1 ✔

nextflow run main.nf -profile slurm

Output

 N E X T F L O W   ~  version 24.10.0

Launching `main.nf` [distracted_angela] DSL2 - revision: e34a5e5f9d

executor >  local (6)
[bb/ddf5ff] FASTQC (fastqc on NA12877) | 1 of 1 ✔
[1f/b0906a] ALIGN (1)                  | 1 of 1 ✔
[34/f0234b] GENOTYPE (1)               | 1 of 1 ✔
[07/08074e] JOINT_GENOTYPE (1)         | 1 of 1 ✔
[e0/b78049] STATS (1)                  | 1 of 1 ✔
[27/35c181] MULTIQC                    | 1 of 1 ✔

Your workflow should have run successfully, however, there is one grave mistake when running on the HPC - all processes were run on the login node! This is Nextflow's default behaviour when no executor is specified.

2.1.3 Scheduling jobs

Recall from Part 1 that Nextflow's executor is the part of the workflow engine that talks to the computing environment (whether it's a laptop or HPC). When running on a shared HPC system, these settings are important to include so they are queued properly on a compute node.

To have processes run on the compute nodes, executor needs to be set to the appropriate job scheduler in our system-specific config files to avoid the default executor (local) being used. 'Local' executions means to run in the same environment as the head job, whether that be your local laptop or the login node of an HPC.

Although Gadi and Setonix both run Nextflow with Singularity, each has different environment variables, filesystem layouts, job schedulers, queue structures, module names/versions, and container cache behaviour. These differences affect how Nextflow executes each process. To have Nextflow submit our processes as separate compute jobs, we need to instruct which job scheduler and queue/partition should be used.

The job scheduler is specified with the Nextflow configuration option executor while the queue/partition to submit jobs to is specified by the queue option.

Note

In Part 2 we will use the same queues and partitions:

• The normalbw queue on Gadi
• The work partition on Pawsey

These are low-cost queues suitable for general compute jobs.

Let's add both the executor and queue configuration options to our system-specific configs to tell Nextflow where to run the processes.

Exercise: Configure executor and queue

Gadi (PBS Pro)Setonix (Slurm)

config/pbspro.config

process {
    // Load the globally installed singularity module before running any process
    module = 'singularity'
    // Run using the pbspro scheduler on the 'normalbw' queue
    executor = 'pbspro'
    queue = 'normalbw'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

config/slurm.config

process {
    // Load the globally installed singularity/4.1.0-slurm module before running any process
    module = 'singularity/4.1.0-slurm'
    // Run using the pbspro scheduler on the 'normalbw' queue
    executor = 'slurm'
    queue = 'work'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PAWSEY_PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

Before we re-run our pipeline, we want to add a few more settings to ensure we are using the HPC responsibly. These include options so you don't overwhelm the system by submitting too many jobs or job queries at once (queueSize, pollInterval, queueStatInterval), and options to avoid generating duplicate files (cache, stageInMode).

Note that for Setonix, we have specified a reservation. This enables us to use reserved resources on Setonix for the duration of the workshop. If you are running Nextflow on Setonix outside of the workshop, this option should be omitted.

Exercise: Further config options

• Add the additional config options to your system-specific config file:

Gadi (PBS Pro)Setonix (Slurm)

config/pbspro.config

executor {
    // For high-throughput jobs, these values should be higher
    queueSize = 30
    pollInterval = '5 sec'
    queueStatInterval = '5 sec'
}

process {
    // Load the globally installed singularity module before running any process
    module = 'singularity'
    // Run using the pbspro scheduler on the 'normalbw' queue
    executor = 'pbspro'
    queue = 'normalbw'
    clusterOptions = "-P ${System.getenv('PROJECT')}"
    storage = "scratch/${System.getenv('PROJECT')}"
    cache = 'lenient'
    stageInMode = 'symlink'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

• Save the file and run the pipeline:

nextflow run main.nf -profile pbspro

Output

Output

executor >  pbspro (3)
[51/e95140] FASTQC (fastqc on NA12877) | 1 of 1 ✔
[bb/c54519] ALIGN (1)                  | 1 of 1 ✔
[93/a8ecf4] GENOTYPE (1)               | 1 of 1, failed: 1 ✘
[-        ] JOINT_GENOTYPE             -
[-        ] STATS                      -
[-        ] MULTIQC                    | 0 of 1
ERROR ~ Error executing process > 'GENOTYPE (1)'

Caused by:
  Process `GENOTYPE (1)` terminated with an error exit status (247)


Command executed:

  gatk --java-options "-Xmx4g" HaplotypeCaller -R Hg38.subsetchr20-22.fasta -I NA12877.bam -O NA12877.g.vcf.gz -ERC GVCF

Command exit status:
  247

Command output:
  (empty)

Command error:
    ...

Work dir:
 /scratch/vp91/xyz777/nextflow-on-hpc-materials/part2/work/93/a8ecf466a33f67f23eb0ca12b0b753

Tip: view the complete command output by changing to the process work dir and entering the command `cat .command.out`

-- Check '.nextflow.log' file for details

config/slurm.config

executor {
    // For high-throughput jobs, these values should be higher
    queueSize = 30
    pollInterval = '5 sec'
    queueStatInterval = '5 sec'
}

process {
    // Load the globally installed singularity/4.1.0-slurm module before running any process
    module = 'singularity/4.1.0-slurm'
    // Run using the pbspro scheduler on the 'normalbw' queue
    executor = 'slurm'
    queue = 'work'
    clusterOptions = "--account=${System.getenv('PAWSEY_PROJECT')} --reservation=NextflowHPC"
    cache = 'lenient'
    stageInMode = 'symlink'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PAWSEY_PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

• Save the file and run the pipeline:

nextflow run main.nf -profile slurm

Output

 N E X T F L O W   ~  version 24.10.0

Launching `main.nf` [wise_venter] DSL2 - revision: e34a5e5f9d

executor >  slurm (6)
[ec/2e1a61] FASTQ | 1 of 1 ✔
[6a/e63199] ALIGN | 1 of 1 ✔
[07/5dea67] GENOT | 1 of 1 ✔
[76/bac7dd] JOINT | 1 of 1 ✔
[1e/4c035e] STATS | 1 of 1 ✔
[f3/c78e59] MULTI | 1 of 1 ✔
Completed at: 17-Nov-2025 12:41:33
Duration    : 2m 46s
CPU hours   : (a few seconds)
Succeeded   : 6

Zoom react!

If your job has finished succesfully, react "Yes" on Zoom, and "No" if it returned an error

Let's explore what resources were actually used and compare them to what was allocated, by inspecting the logs and system job information using the methods from Part 1.

We will use the respective job scheduler introspection tools to observe the resources used on both both systems.

Exercise: Inspect resource usage

• Find the Job ID of the failed or completed GENOTYPE process in your .nextflow.log:

grep -w GENOTYPE .nextflow.log | grep jobId

The output should look something like:

Nov-11 12:26:17.249 [Task submitter] DEBUG nextflow.executor.GridTaskHandler - [PBSPRO] submitted process GENOTYPE (1) > jobId: 154278383.gadi-pbs; workDir: /scratch/ad78/fj9712/nextflow-on-hpc-materials/part2/work/0b/465f7eacfa500698687ff12df65060
Nov-11 12:27:47.144 [Task monitor] DEBUG n.processor.TaskPollingMonitor - Task completed > TaskHandler[jobI d: 154278383.gadi-pbs; id: 5; name: GENOTYPE (1); status: COMPLETED; exit: 0; error: -; workDir: /scratch/a d78/fj9712/nextflow-on-hpc-materials/part2/work/0b/465f7eacfa500698687ff12df65060 started: 1762828007140; exited: 2025-11-11T02:27:35Z; ]

The value we need in this example is 154278383 - this corresponds to the job id that was scheduled.

• Then, use this job ID and the specific job introspection command for your HPC system to view the resource usage of the GENOTYPE process:

Gadi (PBS Pro)Setonix (Slurm)

Use qstat -xf <job_id> for a comprehensive summary of job allocation, environment variables, and resource usage:

qstat -xf <job_id>

Job Id: 154038474.gadi-pbs
Job_Name = nf-GENOTYPE_1
Job_Owner = user@gadi-login-05.gadi.nci.org.au
resources_used.cpupercent = 94
resources_used.cput = 00:02:50
resources_used.jobfs = 0b
resources_used.mem = 512124kb
resources_used.ncpus = 1
resources_used.vmem = 512124kb
resources_used.walltime = 00:03:03
job_state = F
queue = normal-exec
...

Use seff for a simple summary of job resource usage:

seff <job_id>

Job ID: 34903205
Cluster: setonix
User/Group: cou057/cou057
State: COMPLETED (exit code 0)
Nodes: 1
Cores per node: 2
CPU Utilized: 00:00:19
CPU Efficiency: 36.54% of 00:00:52 core-walltime
Job Wall-clock time: 00:00:26
Memory Utilized: 682.74 MB
Memory Efficiency: 37.11% of 1.80 GB (920.00 MB/core)

These reporting tools show that the jobs were assigned the following resources:

	CPU	Memory
Gadi	1	512 MB
Setonix	2	1.8 GB

We have observed that the default of 1.8 GB RAM allocated to the Setonix GENOTYPE job was sufficient, but the default of 512 MB on Gadi was not.

This is why explicit resource configuration is important. Even though the pipeline technically ran (or failed), these defaults are unsuitable for real data.

Many Nextflow workflows provide test data that can be used to help get the pipleline running on your HPC. Researchers can be left confused when a successful test run is followed by a failed run on their own data. The test data is often small and requires minimal resources, while real data can be orders of magnitude larger and more complex. This discrepancy can lead to unexpected failures if the workflow is not properly configured for the actual data being processed.

We will now go on to look at how we can create a custom configuration file to specify appropriate resources for our data and HPC environment.

2.1.4 Custom workflow configuration files

So far we have applied the default nextflow.config file that contains details required to run the workflow on any platform. We have then gone on to create and apply an infrastructure-specific configuration file (config/pbspro.config or config/slurm.config) to tell Nextflow how and where to run on a particular HPC system. Next we will create a third configuration file (config/custom.config) to specify resource requirements that are appropriate for our data and HPC environment.

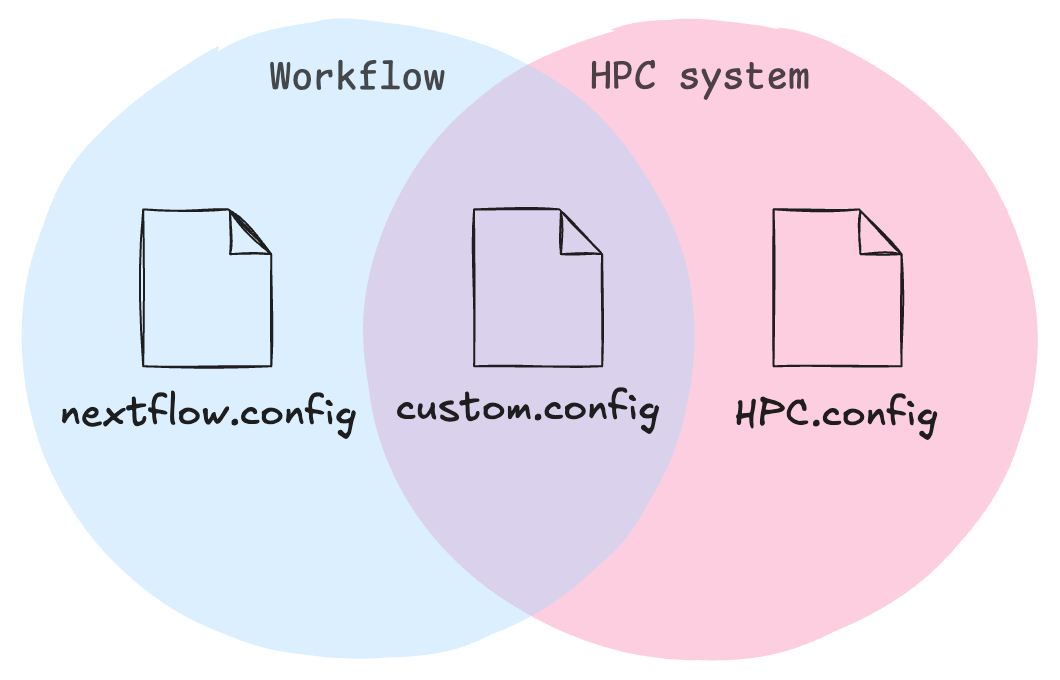

At this point, you may be wondering "Why do we have so many configuration files? We use three different configuration files to keep our Nextflow workflows reproducible, modular, and portable across different systems.

This setup:

• Ensures consistency when running the same pipeline in different environments
• Allows re-use of configuration components across multiple pipelines
• Simplifies maintenance by isolating system-specific settings from workflow logic

Each configuration file serves a distinct purpose:

• nextflow.config is the main configuration file that defines the core behaviour of the workflow itself (e.g. main.nf). It includes parameters (params), and references to profiles. To maintain reproducibility, this file should not be modified during system-specific tuning. It should only change if the underlying workflow logic changes - that is, what gets run.

• config/pbspro.config and config/slurm.config define how the pipeline should run on a particular type of HPC system. These files specify details such as which executor to use (e.g. PBS Pro or Slurm), whether to use Singularity or Docker, and other runtime behaviour. They do not control the internal logic of the pipeline. These files should be tailored to match the requirements and setup of the HPC infrastructure you are targeting. Working on a new HPC? You'll need to make a new config file for it! But the good news is you can still use the same nextflow.config file.

• config/custom.config is an additional system-specific customisation layer that defines process settings such as CPU and memory requests. When developing or adapting a custom pipeline for an HPC environment, this is typically where most tuning happens to fit the specific node architecture, queue constraints, and resource requirements of the data being processed. While these settings could be included within the same config that defines the executor and other system-specific settings, separating them into a distinct file allows for easier management and modification of resource allocations without altering the core system configuration. This modularity is especially useful when experimenting with different resource configurations during pipeline development and testing or when adapting the pipeline for different datasets with varying resource needs.

While this structure is a useful starting point, it is not the only way to structure your configuration. The nf-core community have their own set of standards with some presets for some instutitions (including Gadi and Setonix!). However, it is important to double check that these configs are suitable and optimal for your purposes. For more information see nf-core/configs.

2.1.5 Assigning default resources

Now that we have an appreciation of the layers of configuration for running Nextflow workflows on HPC, we will continue to get the pipeline running by specifying what resources should be run, instead of relying on the system-specific default. We want to ensure that:

• Jobs are being scheduled correctly
• All process tasks and the pipeline complete successfully

Note that the resources assigned differ across sytems - these values are based on the average memory available per core and will be revisited in the upcoming lesson on resourcing.

Exercise: Create custom resource config

• Create a new file config/custom.config

  touch config/custom.config


• Open the new empty file, and add the following contents based on your HPC

Gadi (PBS Pro)Setonix (Slurm)

custom.config

process {
    cpu = 1 // 'normalbw' queue = 128 GB / 28 CPU ~ 4.6 OR 9.1
    memory = 4.GB
}

custom.config

process {
    cpu = 1 // 'work' partition = 230 GB / 128 CPU ~ 1.8
    memory = 2.GB
}

Since we have been repeatedly running the same Nextflow run command, it makes sense to save this into a run script. This can reduce human error (for example missing a flag, typos) and is easier to re-run. This is especially useful in the testing and benchmarking stages and can later be adapted into a job submission script if your HPC has a queue where you can run Nextflow head jobs

Exercise: Create and use a run script

• Create a new file called run.sh

  touch run.sh


• Open the new empty file, and copy-paste the following code based on your HPC:

Gadi (PBS Pro)Setonix (Slurm)

run.sh

#!/bin/bash

module load nextflow/24.04.5
module load singularity

nextflow run main.nf -profile pbspro -c config/custom.config

run.sh

#!/bin/bash

module load nextflow/24.10.0
module load singularity/4.1.0-slurm

nextflow run main.nf -profile slurm -c config/custom.config

• Save the file (Windows: Ctrl+S, macOS: Cmd+S)

• Provide execute permission by running:

  chmod +x run.sh


• Run the workflow using the new run script:

./run.sh

Results

On both Gadi and Setonix, the workflow should now be successful and executed end-to-end on the respective scheduler.

Gadi (PBS Pro)Setonix (Slurm)

Loading nextflow/24.04.5
Loading requirement: java/jdk-17.0.2

 N E X T F L O W   ~  version 24.04.5

Launching `main.nf` [determined_picasso] DSL2 - revision: 5e5c4f57e0

executor >  pbspro (6)
[7b/16f7c2] FASTQC (fastqc on NA12877) | 1 of 1 ✔
[ec/5fd924] ALIGN (1)                  | 1 of 1 ✔
[17/803fe5] GENOTYPE (1)               | 1 of 1 ✔
[0f/e21d58] JOINT_GENOTYPE (1)         | 1 of 1 ✔
[40/0c6e28] STATS (1)                  | 1 of 1 ✔
[6a/94910b] MULTIQC                    | 1 of 1 ✔
Completed at: 10-Nov-2025 12:19:38
Duration    : 4m 1s
CPU hours   : (a few seconds)
Succeeded   : 6

 N E X T F L O W   ~  version 24.10.0

Launching `main.nf` [nostalgic_bell] DSL2 - revision: 5e5c4f57e0

executor >  slurm (6)
[a4/1eae6a] FASTQC (fastqc on NA12877) [100%] 1 of 1 ✔
[76/9e6fca] ALIGN (1)                  [100%] 1 of 1 ✔
[96/f57a2e] GENOTYPE (1)               [100%] 1 of 1 ✔
[ec/547a9c] JOINT_GENOTYPE (1)         [100%] 1 of 1 ✔
[88/b49a40] STATS (1)                  [100%] 1 of 1 ✔
[8d/b5b351] MULTIQC                    [100%] 1 of 1 ✔
Completed at: 10-Nov-2025 10:28:08
Duration    : 3m 31s
CPU hours   : (a few seconds)
Succeeded   : 6

2.1.6 Summary

You’ve now built the scaffolding needed to begin fine-tuning your resource requests and exploring monitoring and optimisation techniques. In the next section, we'll start measuring actual resource usage and configuring processes more precisely for efficient implementation on the underlying HPC system.

2.1.7 Code checkpoint

Show complete code

Gadi (PBS Pro)Setonix (Slurm)

config/pbspro.config

executor {
    // For high-throughput jobs, these values should be higher
    queueSize = 30
    pollInterval = '5 sec'
    queueStatInterval = '5 sec'
}

process {
    // Load the globally installed singularity module before running any process
    module = 'singularity'
    // Run using the pbspro scheduler on the 'normalbw' queue
    executor = 'pbspro'
    queue = 'normalbw'
    clusterOptions = "-P ${System.getenv('PROJECT')}"
    storage = "scratch/${System.getenv('PROJECT')}"
    cache = 'lenient'
    stageInMode = 'symlink'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

run.sh

#!/bin/bash

module load nextflow/24.04.5
module load singularity

nextflow run main.nf -profile pbspro -c config/custom.config

slurm.config

executor {
    // For high-throughput jobs, these values should be higher
    queueSize = 30
    pollInterval = '5 sec'
    queueStatInterval = '5 sec'
}

process {
    // Load the globally installed singularity/4.1.0-slurm module before running any process
    module = 'singularity/4.1.0-slurm'
    // Run using the pbspro scheduler on the 'normalbw' queue
    executor = 'slurm'
    queue = 'work'
    clusterOptions = "--account=${System.getenv('PAWSEY_PROJECT')} --reservations=NextflowHPC"
    cache = 'lenient'
    stageInMode = 'symlink'
}

singularity {
    // Explicitly turns on container execution
    enabled = true
    // Automatically bind-mount working directory on scratch and common system paths
    autoMounts = true
    // Define location of stored container images
    cacheDir = "/scratch/${System.getenv('PAWSEY_PROJECT')}/${System.getenv('USER')}/nextflow-on-hpc-materials/singularity"
}

run.sh

#!/bin/bash

module load nextflow/24.10.0
module load singularity/4.1.0-slurm

nextflow run main.nf -profile slurm -c config/custom.config
