2.5 Productionising our workflow

Learning objectives

  1. Configure Nextflow workflows to run on multiple samples
  2. Enable and interpret Nextflow's inbuilt reports
  3. Implement the tag directive to label tasks for better tracking and profiling
  4. Configure a Nextflow workflow to use multiple CPUs for a process

Now that we have a working pipeline on a single-sample, we will update it to take multiple samples and introduce Nextflow concepts that not only help with understanding and profiling the pipeline but also set the stage for productionising it.

We will focus on making the workflow scalable, robust, and efficient for real-world data processing. Key productionisation practices include:

  • Automating tasks
  • Handling errors gracefully
  • Optimising resource usage
  • Ensuring reproducibility.

These steps ensure that the pipeline can be reliably used in more complex scenarios, like when processing multiple samples in parallel.

2.5.1 Labeling tasks with the tag directive

The tag process directive allows you to add a custom label, or tag, to each task that gets executed. It is useful for identifying what is being run when the workflow is being executed in a bit more detail. It is especially helpful showing you what is being run when we run multiple samples, and for profiling later.

Add the following tag directives to your existing FASTQC and QUANTIFICATION processes.

For FASTQC:

main.nf
process FASTQC {
    tag "fastqc on ${sample_id}"
    container "quay.io/biocontainers/fastqc:0.12.1--hdfd78af_0"
    publishDir "results", mode: 'copy'

And for QUANTIFICATION:

main.nf
process QUANTIFICATION {
    tag "salmon on ${sample_id}"
    container "quay.io/biocontainers/salmon:1.10.1--h7e5ed60_0"
    publishDir "results", mode: 'copy'

The tags we just added indicates what program is being run (fastqc or salmon), and on which sample (${sample_id}) it is being run on.

Run the pipeline with the updated tags:

nextflow run main.nf -resume

The output should look similar to:

Output
Launching `main.nf` [distraught_bell] DSL2 - revision: dcb06191e7

executor >  local (5)
[aa/3b8821] INDEX                           | 1 of 1, cached: 1 ✔
[c2/baa069] FASTQC (fastqc on gut)          | 1 of 1, cached: 1 ✔
[ad/e49b20] QUANTIFICATION (salmon on gut)  | 1 of 1, cached: 1 ✔
[a3/1f885c] MULTIQC                         | 1 of 1, cached: 1 ✔

No new tasks were run, but FASTQC and QUANTIFICATION processes now have labels appended in the execution output.

2.5.2 Using a samplesheet with multiple samples

Recall that the samplesheet is used to control which files/data are analysed by the workflow. Inspect data/samplesheet_full.csv.

samplesheet_full.csv
1
2
3
4
sample,fastq_1,fastq_2
gut,data/ggal/gut_1.fq,data/ggal/gut_2.fq
liver,data/ggal/liver_1.fq,data/ggal/liver_2.fq
lung,data/ggal/lung_1.fq,data/ggal/lung_2.fq

Compared to the samplesheet we have been using (data/samplesheet.csv), this one contains two additional lines for the liver and lung paired reads.

Next we will run the workflow with all three samples by overwriting the default input for reads with data/samplesheet_full.csv using the double hyphen approach --reads in the run command.

Run the workflow:

nextflow run main.nf -resume --reads data/samplesheet_full.csv

Your output should look similar to:

Output
Launching `main.nf` [distraught_bell] DSL2 - revision: dcb06191e7

executor >  local (5)
[de/fef8c4] INDEX                           | 1 of 1, cached: 1 ✔
[4e/b4c797] FASTQC (fastqc on liver)        | 3 of 3, cached: 1 ✔
[36/93c8b4] QUANTIFICATION (salmon on lung) | 3 of 3, cached: 1 ✔
[e7/5d91ea] MULTIQC                         | 1 of 1 ✔

There are two new tasks run for FASTQC and QUANTIFICATION. Our newly added tags indicate which samples they were run on - either lung or liver reads!

Advanced Exercise: Inspecting the reads_in channel with multiple samples
  1. Update the workflow scope to inspect the output of the reads_in channel (i.e. with .view())
  2. Run the workflow with samplesheet_full.csv

What has changed with what the reads_in channel is emitting?

Solution

Viewing reads_in:

main.nf
    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

    reads_in.view()

    // Run the fastqc step with the reads_in channel
    FASTQC(reads_in)

Run the workflow:

nextflow run main.nf -resume --reads data/samplesheet_full.csv

Your output should look something like:

Output
executor >  local (5)
[de/fef8c4] INDEX                           | 1 of 1, cached: 1 ✔
[4e/b4c797] FASTQC (fastqc on liver)        | 3 of 3, cached: 3 ✔
[36/93c8b4] QUANTIFICATION (salmon on lung) | 3 of 3, cached: 3 ✔
[e7/5d91ea] MULTIQC                         | 1 of 1 ✔
[gut, .../data/ggal/gut_1.fq, .../data/ggal/gut_2.fq]
[liver, .../data/ggal/liver_1.fq, .../data/ggal/liver_2.fq]
[lung, .../data/ggal/lung_1.fq, .../data/ggal/lung_2.fq]

There are now a total of three tuples emitted separately for each sample. When passed into FASTQC and QUANTIFICATION, each tuple is processed separately in independent tasks.

Remove reads_in.view() before proceeding.

2.5.3 Cleaning up previous Nextflow runs

You may have noticed that Nextflow is a bit messy. As we make incremental changes to our workflow and run our tests, we generate more and more task directories under work/. With large pipelines, this can result in a lot of files, and can potentially take up a lot of space. Therefore, we will often want to do periodic clean-ups of the work/ directory, but due to the random naming of task directories, it can be difficult to work out which ones are older or newer, and therefore difficult to work out how best to clean up old runs.

Thankfully, Nextflow has a convenient clean subcommand to help us with this task.

nextflow clean

If you try and run the above command, you will get the following message:

output
Neither -f or -n specified -- refused to clean

Thankfully, Nextflow protects us from accidentally deleting our run data unless we force it to do so with the -f flag. However, before we commit to deleting data, it can often be helpful to get a list of all the runs that will be deleted. You can use the -n flag to perform a dry-run of the cleanup process:

nextflow clean -n
Output
Would remove /home/user/hello-nextflow/work/a1/acbfd8d940f6a217a741aed23279e6
Would remove /home/user/hello-nextflow/work/b2/def19f238e328b283820c92e202e29
Would remove /home/user/hello-nextflow/work/c3/feb819a918abd91819c8143053f091

If you are happy to proceed, you can actually perform the cleanup with:

nextflow clean -f
Output
Removed /home/user/hello-nextflow/work/a1/acbfd8d940f6a217a741aed23279e6
Removed /home/user/hello-nextflow/work/b2/def19f238e328b283820c92e202e29
Removed /home/user/hello-nextflow/work/c3/feb819a918abd91819c8143053f091

Using nextflow clean

By default, nextflow clean command will clean up just the latest run. However, you can also specify the name of a specific run you wish to clean up. Remember that the run name is a randomly generated two word phrase, e.g. golden_cantor or mighty_murdock. These run names are displayed when running the workflow, and can also be found by inspecting the Nextflow logs. You can also choose to clean up runs before or after a specific run. You simply need to use one of the flags -before, -after, or -but along with the name of the run:

  • nextflow clean -f: Remove the latest run
  • nextflow clean golden_cantor -f: Specifically remove the run golden_cantor
  • nextflow clean -before golden_cantor -f: Remove all runs before golden_cantor
  • nextflow clean -after golden_cantor -f: Remove all runs after golden_cantor
  • nextflow clean -but golden_cantor -f: Remove all runs except for golden_cantor

See the Nextflow docs for more information.

2.5.4 An introduction to configuration

In this section, we will explore how Nextflow workflows can be configured to utilise the computational resources available. Whilst there are many ways to configure Nextflow workflows (especially on HPC clusters), we will focus on increasing the number of CPUs used to speed up tasks.

Some bioinformatics tool, like FastQC, support multithreading to speed up analyses. From the fastqc --help command, you'll notice the following option:

Output
-t --threads    Specifies the number of files which can be processed
                simultaneously.

This means we can configure the number of threads (or CPUs) that FastQC uses to process multiple files in parallel to speed up the analysis. In Nextflow, we control this through the cpus directive.

Recall that our FASTQC takes as input the reads_in channel which emits two .fastq files. We will configure the process to use 2 CPUs so each file gets run on 1 CPU each (the maximum CPUs fastqc will use per file), simulataneously.

In your main.nf script, update the script definition in the FASTQC process to add the multithreading option:

main.nf
    script:
    """
    mkdir fastqc_${sample_id}_logs
    fastqc --outdir "fastqc_${sample_id}_logs" -f fastq $reads_1 $reads_2 -t $task.cpus
    """
  • The task.cpus variable is automatically populated with the number of CPUs allocated to the task based on the Nextflow configuration. By default this is 1.

Next, we need to update our nextflow.config file to configure the number of CPUs to be used. To allow each FastQC process to use 2 CPUs, update the config file as follows:

nextflow.config
process.cpus = 2

singularity {
    enabled = true
    cacheDir = "$HOME/singularity_image"
}

The -t $task.cpus argument will populate as -t 2 when we run the workflow next. Before we do, we will explore Nextflow's built-in reporting system to assess resource usage.

2.5.5 Inspecting workflow performance

When running workflows, it is helpful to understand how each part of your workflow is using resources like CPUs, memory, and the time taken to complete. Nextflow can generate text-based and visual reports that give you clear picture of how your workflow ran and identify areas for improvement.

We will explore some of Nextflow's built-it in tools that can show these important details of how tasks ran.

To enable these reports, add the following to your nextflow.config file:

nextflow.config
process.cpus = 2

singularity {
    enabled = true
    cacheDir = "$HOME/singularity_image"
}

// enable reporting
dag.enabled = true
report.enabled = true
timeline.enabled = true
trace.enabled = true

Run the workflow. To assess the resource usage all processes need to be run again so -resume should not be used. (If we resume now, it will still appear as a cached run, with limited information).

nextflow run main.nf --reads "data/samplesheet_full.csv"

Inspect your project directory. You should have 3 .html files and a .txt file with matching timestamps. A summary of the different reports are included in the table below. For a detailed description of each report see the Nextflow documentation on reports.

Report type Description
dag A high-level graph that shows how processes and channels are connected to each other.
report A visual summary of the time and resources used grouped by process.
timeline A Gannt chart that shows when each task started and ended.
trace A detailed text log with the time and resources used by each task.

Complete the following steps in the exercise to view the report file report-*.html in your local browser.

Exercise

  1. In the VSCode file explorer sidebar, locate the report file (e.g. report-*.html)
  2. Right click on the file and select "Download" to save it to your local computer.
  3. Open the report-*.html in a browser.
  4. Navigate to "Resource Usage" -> "CPU".
  5. Hover over the FASTQC bar chart and note the mean CPU usage.

Poll

What was the mean CPU usage for your FASTQC process?

Solution

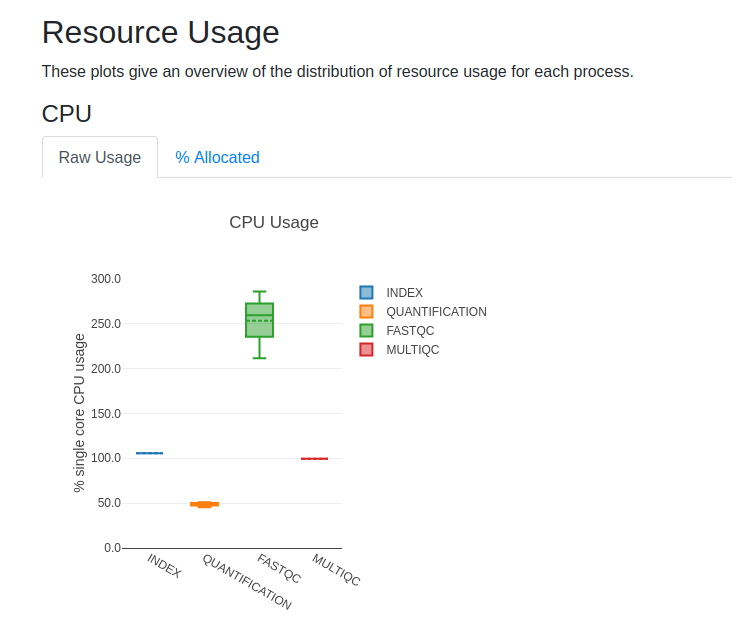

In this report, a mean of 2.53 CPUs were utilised by the FASTQC process across the 3 samples. This value will slightly differ across runs.

You have successfully run, configured, and profiled a multi-sample workflow!

Summary

In this lesson you have learned:

  1. How to add custom labels with process tags
  2. How to use task.cpus to enable multithreading within processes
  3. How to configure process resources with nextflow.config
  4. How to enable and view Nextflow workflow reports
