2.4 Combining channels and multiple process outputs

Learning objectives

Implement a channel that combines the contents of two channels.
Implement a process with multiple output files.

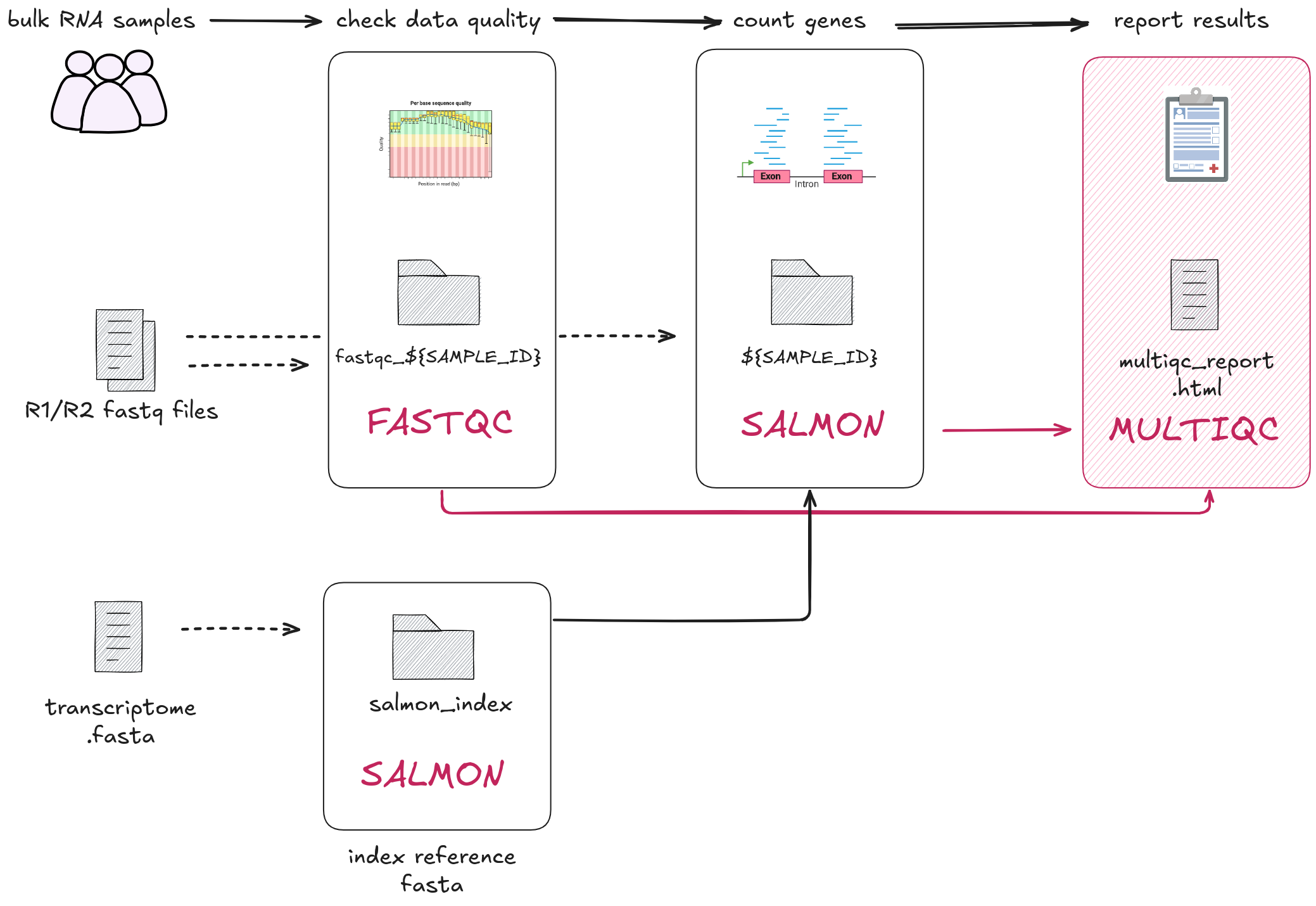

In this step we will transform the 03_multiqc.sh into a process called MULTIQC. This step focuses on the final step of our RNAseq data processing workflow: generating a report that summarises the quality control and quantification steps.

To do this, we will run MultiQC, which is a popular tool for summarising the outputs of many different bioinformatics tools. It aggregates results from all our analyses and renders it into a nice report.

From the MultiQC docs

MultiQC doesn’t do any analysis for you - it just finds results from other tools that you have already run and generates nice reports. See here for a list of supported tools. You can also see an example report here.

Open the bash script 03_multiqc.sh.

03_multiqc.sh

multiqc --outdir results/ results/

This script is a lot simpler than previous scripts we've worked with. It searches searches for the output files generated by the FASTQC and QUANTIFICATION processes saved to the results/ directory. As specified by --outdir results/, it will then output two MultiQC files to the same results/ directory:

A directory called multiqc_data/
A report file called multiqc_report.html

2.4.1 Building the `MULTIQC` process

Process directives, `script`, and `input`

Here is the process template with the container and publishDir directives provided. Add this to your main.nf after the QUANTIFICATION process:

main.nf

process MULTIQC {
  container "quay.io/biocontainers/multiqc:1.19--pyhdfd78af_0"
  publishDir "results", mode: 'copy'

  input:
  path "*"

  output:
    < process outputs >

  script:
  """
  multiqc .
  """
}

The script and input follow the MultiQC Nextflow integration recommendations. The key thing to note here is that MultiQC needs to be run once for all upstream outputs.

From the information above we know that for the original bash script the inputs for multiqc are the files and directories within the results/ directory. Specifically, the inputs are the outputs from the fastqc and salmon quant commands. To replicate this for our new process, we will need to bring the outputs of the FASTQC (fastqc_gut_logs/) and QUANTIFICATION (gut/) processes into a single channel as input to MULTIQC.

Why you should NOT use the publishDir folder as a process input

It might make sense to have the results/ folder (set by publishDir) as the input to the process here, but it may not exist until the workflow finishes.

Using the publishDir as a process input can cause downstream processes to run prematurely, even if the directory is empty or incomplete. In this case, MultiQC might miss some inputs.

Always use channels to pass data between processes. Channels enable Nextflow to track outputs and ensure that downstream processes only run when all required data is ready, maintaining proper worfklow control.

We will expand more on how to bring these outputs together in the next section.

For now, note how our input definition is a bit different to previous processes. Instead of defining a variable name to represent our input, we are defining our input as path "*".

This syntax tells Nextflow to simply expect any number of files or directories as input. With this syntax, we don't get a variable to use within our script, but that's OK, because MultiQC just needs to be given a directory to search (in our case, the current directory, represented by .) and it will automatically find all the relevant data.

Defining the process `output`

The MultiQC output consists of the following:

An HTML report file called multiqc_report.html
A directory called multiqc_data/ containing the data used to generate the report.

Add the following output definition to the MULTIQC process:

main.nf

process MULTIQC {

  container "quay.io/biocontainers/multiqc:1.19--pyhdfd78af_0"
  publishDir params.outdir, mode: 'copy'

  input:
  path "*"

  output:
  path "multiqc_report.html"
  path "multiqc_data"

  script:
  """
  multiqc .
  """
}

You have now defined a process with multiple outputs!

2.4.2 Combining channels with operators

Tip

When running MultiQC, it needs to be run once on all the upstream input files. This is so a single report is generated with all the results.

The input files for our MULTIQC process will be the outputs from the FASTQC and QUANTIFICATION processes. Both FastQC and Salmon are supported by MultiQC and the required files are detected automatically by the program. However, in order to use MultiQC within our Nextflow pipeline, we will first need to do some pre-processing to get all of our data in one place for MultiQC to search through.

The goal of this step is to bring the outputs from MULTIQC and QUANTIFICATION processes into a single input channel for the MULTIQC process. This ensures that MultiQC is run once.

The next few additions will involve chaining together Nextflow operators to correctly format inputs for the MULTIQC process.

Poll

What Nextflow input type (qualifier) ensures that inputs are grouped and processed together?

Add the following to the workflow block in your main.nf file, under the call to the QUANTIFICATION process.

main.nf

// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

    // Run the fastqc step with the reads_in channel
    FASTQC(reads_in)

    // Define the quantification channel for the index files
    transcriptome_index_in = INDEX.out[0]

    // Run the quantification step with the index and reads_in channels
    QUANTIFICATION(transcriptome_index_in, reads_in)

    // Define the multiqc input channel
    FASTQC.out[0]
        .mix(QUANTIFICATION.out[0])
        .view()

}

This channel does the following:

Takes the output of FASTQC, using element [0] to refer to the first element of the output.
Uses mix(QUANTIFICATION.out[0]) to combine FASTQC.out[0] output with the first element of the QUANTIFICATION output.
Uses view() allows us to see the values emitted into the channel.

For more information, see the documentation on mix.

Run the workflow to see what it produces:

nextflow run main.nf -resume

The output should look something like:

Output

Launching `main.nf` [stupefied_minsky] DSL2 - revision: 82245ce02b

[de/fef8c4] INDEX              | 1 of 1, cached: 1 ✔
[bb/32a3aa] FASTQC (1)         | 1 of 1, cached: 1 ✔
[a9/000f36] QUANTIFICATION (1) | 1 of 1, cached: 1 ✔
/home/user1/part2/work/bb/32a3aaa5e5fd68265f0f34df1c87a5/fastqc_gut_logs
/home/user1/part2/work/a9/000f3673536d98c8227b393a641871/gut

The outputs have been emitted one after the other. This means that they are currently two separate elements within the channel, which will cause them to be processed separately. We really need them to be processed together (generated in the same MultiQC report). What we need is for them to both be contained within a single tuple, so we need to add one more step.

Note

Note that the outputs point to the files in the work directories, rather than the publishDir. This is one of the ways that Nextflow ensures all input files are ready and ensures proper workflow control.

The collect operator is perfect for this. It takes all of the elements in a channel and outputs a single tuple containg everything - just what we need! Add a collect operator to the chain of operators to ensure that all samples are processed together in the same process and view the output:

main.nf

// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

    // Run the fastqc step with the reads_in channel
    FASTQC(reads_in)

    // Define the quantification channel for the index files
    transcriptome_index_in = INDEX.out[0]

    // Run the quantification step with the index and reads_in channels
    QUANTIFICATION(transcriptome_index_in, reads_in)

    // Define the multiqc input channel
    FASTQC.out[0]
        .mix(QUANTIFICATION.out[0])
        .collect()
        .view()

}

Run the workflow:

nextflow run main.nf -resume

The channel now outputs a single tuple with the two directories:

Output

Launching `main.nf` [small_austin] DSL2 - revision: 6ab927f137

[de/fef8c4] INDEX              | 1 of 1, cached: 1 ✔
[bb/32a3aa] FASTQC (1)         | 1 of 1, cached: 1 ✔
[a9/000f36] QUANTIFICATION (1) | 1 of 1, cached: 1 ✔
[/home/user1/part2/work/bb/32a3aaa5e5fd68265f0f34df1c87a5/fastqc_gut_logs, /home/user1/part2/work/a9/000f3673536d98c8227b393a641871/gut]

Now that we have a channel that emits data in the correct format, add the finishing touches to the workflow scope.

Exercise: Assign the input channel

Assign the chain of operations to a channel called multiqc_in
Remove the .view() operator

Solution

main.nf

    // Define the quantification channel for the index files
    transcriptome_index_in = INDEX.out[0]

    // Run the quantification step with the index and reads_in channels
    QUANTIFICATION(transcriptome_index_in, reads_in)

    // Define the multiqc input channel
    multiqc_in = FASTQC.out[0]
        .mix(QUANTIFICATION.out[0])
        .collect()

}

Exercise: Call the MULTIQC process

Add a call to the MULTIQC process in the workflow scope
Pass the multiqc_in channel as input.

Solution

main.nf

    // Define the quantification channel for the index files
    transcriptome_index_in = INDEX.out[0]

    // Run the quantification step with the index and reads_in channels
    QUANTIFICATION(transcriptome_index_in, reads_in)

    // Define the multiqc input channel
    multiqc_in = FASTQC.out[0]
        .mix(QUANTIFICATION.out[0])
        .collect()

    // Run the multiqc step with the multiqc_in channel
    MULTIQC(multiqc_in)

}

Run the workflow:

nextflow run main.nf -resume

Your output should look something like:

Output

Launching `main.nf` [hopeful_swanson] DSL2 - revision: a4304bbe73

[aa/3b8821] INDEX          [100%] 1 of 1, cached: 1 ✔
[c2/baa069] QUANTIFICATION [100%] 1 of 1, cached: 1 ✔
[ad/e49b20] FASTQC         [100%] 1 of 1, cached: 1 ✔
[a3/1f885c] MULTIQC        [100%] 1 of 1 ✔

2.4.3 Inspecting the MultiQC report

Let's inspect the generated MultiQC report. You will need to download the file to your local machine and open it in a web browser.

Exercise

In the VSCode Explorer sidebar, locate the report results/multiqc_report.html
Right click on the file, and select "Download"
Open the file in a web browser

Poll

Under the "General Statistics" section, how many samples (i.e. rows) have been included in the table?

Tip

If you have to view many .html files on a remote server, we recommend using the Live Server VSCode extension.

The extension allows you to view .html files within a VSCode tab instead of manually downloading files locally.

You now have a working pipeline for a single paired-end sample!

Summary

In this lesson you have learned:

How to implement a process following integration recommendations
How to define an output with multiple outputs
How to use the mix and collect operators to combine outputs into a single tuple
How to access and view .html files from a remote server
