2.2 Samplesheets, operators, and groovy

Learning objectives

  1. Implement a process with a tuple input.
  2. Understand why samplesheets should be used to read in data.
  3. Build an input channel using operators and Groovy.

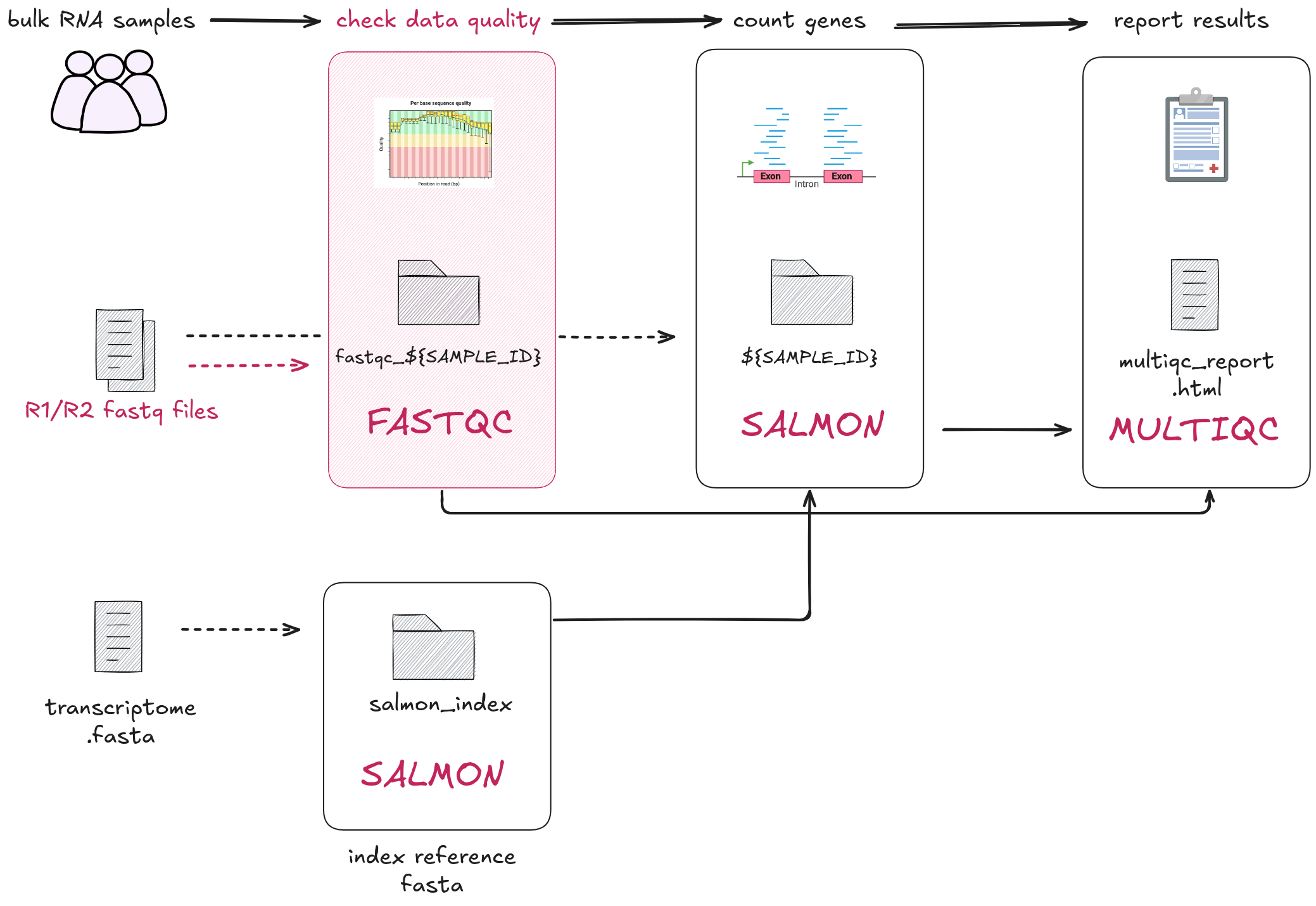

In this lesson we will transform the next bash script, 01_fastqc.sh into a process called FASTQC. This step focuses on the next phase of RNAseq data processing: assessing the quality of some our raw sequencing reads.

To do this, we will need to run FastQC over pairs of FASTQ files.

Our goal in porting these bash scripts to Nextflow is to build a workflow that can scale to run on multiple samples with minimal intervention. To do this, we will use a samplesheet, allowing us to provide multiple samples and their corresponding FASTQ files to our Nextflow workflow.

Building channels in Nextflow can be tricky. Depending on what data you need to capture and how you want to organise it you will likely need to use operators to manipulate your channel. We saw some simple operators back in Part 1. However, sometimes operators alone won't be enough, and you'll need to also use Groovy (Nextflow's underlying programming language) to capture pertinent information.

Since this is an advanced task, we will provide you with all the code you need. Although Nextflow does not yet offer a built-in operator for reading samplesheets, their use is widespread in bioinformatics workflows. So, we will be building a simple samplesheet reader from a couple of operators and some simple Groovy code.

2.2.1 Inspecting our FastQC script

Open the bash script 01_fastqc.sh:

01_fastqc.sh
SAMPLE_ID=gut
READS_1="data/ggal/${SAMPLE_ID}_1.fq"
READS_2="data/ggal/${SAMPLE_ID}_2.fq"

mkdir -p "results/fastqc_${SAMPLE_ID}_logs"
fastqc \
    --outdir "results/fastqc_${SAMPLE_ID}_logs" \
    --format fastq ${READS_1} ${READS_2}

There's a lot going on in this script, let's break it down.

SAMPLE_ID=gut assigns "gut" to the bash variableSAMPLE_ID. This is used to:

  • Avoid hardcoding the sample name multiple times in the script
  • Ensure that file pairs of the same sample are processed together (e.g. gut_1.fq and gut_2.fq)
  • Ensure that this script can be run on different sample pairs

READS_1 and READS_2 specify the paths to the paired gut .fq files.

Similar to the bash script in the previous step (00_index.sh), mkdir -p creates an output folder so that the fastqc outputs can be saved here.

In the fastqc command,

  • --outdir specifies the name of the output directory
  • --format is a required flag to indicate what format the the reads are in
  • ${READS_1} and ${READS_2} propagate the paths of the .fq files

2.2.2 Building the FASTQC process

Defining the process directives

Start by adding the following process scaffold and script definition to your main.nf under the INDEX process code but before the workflow{} block:

main.nf
process FASTQC {
  container "quay.io/biocontainers/fastqc:0.12.1--hdfd78af_0"
  publishDir "results", mode: 'copy'

  input:
    < process inputs >

  output:
    < process outputs >

  script:
  """
  mkdir -p "fastqc_${sample_id}_logs"
  fastqc --outdir "fastqc_${sample_id}_logs" --format fastq $reads_1 $reads_2
  """
}

It contains:

  • Prefilled process directives container and publishDir.
  • The empty input: block for us to define the input data for the process.
  • The empty output: block for us to define the output data for the process.
  • The script: block prefilled with the command that will be executed.

Note that for the script block we have removed the initial three lines that contained the bash variable definitions. Instead, we will be using Nextflow variables that are defined within the process' input block.

However, note that the mkdir and fastqc commands that remain look very similar to their original forms, but are now using those Nextflow variables instead of the original bash variables.

Dynamic naming

Recall that curly brackets are used to pass variables as part of a file name.

Advanced content: Nextflow vs Bash variables

If you are familiar with Bash programming, you may notice that the way we use Nextflow variables looks exactly like how we use Bash variables - by using the $ symbol followed by the variable name, possibly within curly brackets:

script:
"""
mkdir -p "fastqc_${sample_id}_logs"
"""

This actually means that Bash variables can't be used in the same way as they normally are. Instead, if you ever need to use a Bash variable within a Nextflow process, you will first need to escape the $ symbol with a backslash (\). This tells Nextflow to ignore the $ and not interpret it as a Nextflow variable:

script:
"""
SOMEBASHVAR="hello"
echo \${SOMEBASHVAR}
"""

For the purposes of this workshop, we won't be using Bash variables, so you don't need to worry about this quirk for now.

Defining the process output

Unlike salmon from the previous process, fastqc requires that the output directory be created before running the command, hence the requirement to run mkdir -p "fastqc_${sample_id}_logs" within the script block. This is a common inconsistency between different bioinformatics tools, so it is good to be aware of it.

Looking at the FastQC command we can see this directory will be our output.

Exercise

Replace < process outputs > with the appropriate output definition for the FASTQC process.

Solution
main.nf
output:
path "fastqc_${sample_id}_logs"

We've used the path qualifier because our output is a directory. Output from the bash script is defined by the fastqc --outdir flag. Because our output contains constant text (i.e. "fastqc_" and "_logs"), we put the whole output string in double quotes and use the dollar sign and curly braces to access the sample_id variable.

Defining the process input

Now we need to define the input block for this process. In this process, we're going to use a combination of Nextflow operators and Groovy to do this.

There are three inputs for this process definition that can be taken from the script definition you just added:

  1. $sample_id
  2. $reads_1
  3. $reads_2

In order to ensure we process the sample ID along with its two related FASTQ files together, we will introduce a new input qualifier: the tuple.

A tuple is simply an ordered collection of objects. When you use a tuple as input to a Nextflow process, it ensures that the objects inside are grouped and processed together as a single unit. This is a requirement when working with multiple pieces of data that are specific to a given sample.

Importance of proper data grouping when using Nextflow

Nextflow uses channels to run processes in parallel and if you aren't careful about how you handle multiple pieces of related data that need to be tied together (e.g. sample IDs and FASTQ paths), you may mix datasets up.

We can use the input qualifier tuple to group multiple values into a single input definition.

In our case, we have three related pieces of data: a $sample_id and its two FASTQ read files $reads_1 and $reads_2. We will define a tuple input to ensure that these inputs stay linked and are processed together, preventing our sample IDs and FASTQ files from getting mixed up between samples.

In the FASTQC process, replace < process inputs > with the input tuple definition:

tuple val(sample_id), path(reads_1), path(reads_2)

Our tuple contains three elements:

  • val(sample_id) represents the value that refers to the sample name.
  • path(reads_1) represents the path to the first read file of paired-end sequencing data.
  • path(reads_2) represent the path to the second read file of paired-end sequencing data.

Note how each item within the tuple has its own qualifier. Also note how we must now wrap each item's name within parentheses, and separte them by commas.

Our FASTQC process should now look like this:

main.nf
process FASTQC {
  container "quay.io/biocontainers/fastqc:0.12.1--hdfd78af_0"
  publishDir "results", mode: 'copy'

  input:
  tuple val(sample_id), path(reads_1), path(reads_2)

  output:
  path "fastqc_${sample_id}_logs"

  script:
  """
  fastqc --outdir "fastqc_${sample_id}_logs" --format fastq $reads_1 $reads_2
  """
}

2.2.3 Reading files with a samplesheet

Up until this point in the workshop, we have been using a lot of hard-coded values.

In practice, hard-coded values, particularly for file names and sample IDs, should almost never be used. Instead, we need a flexible way of providing variable values to our pipeline. For that purpose, we can use a samplesheet.

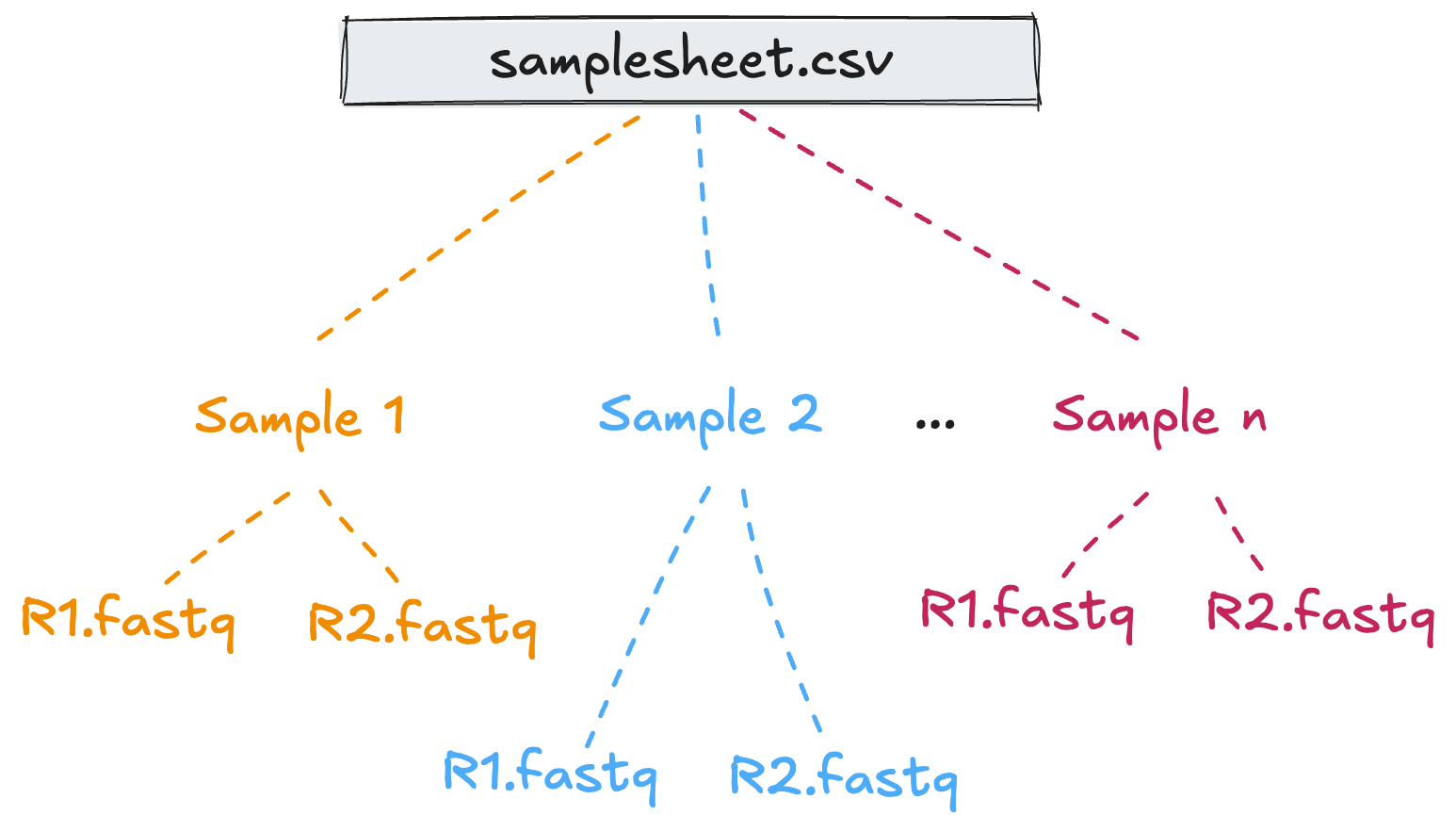

A samplesheet is a delimited text file where each row contains information or metadata that needs to be processed together.

Tip: using samplesheets in scalable bioinformatics workflows

Working with samplesheets is particularly useful when you have a combination of files and metadata that need to be assigned to a sample in a flexible manner. Typically, samplesheets are written in comma-separated (.csv) or tab-separated (.tsv) formats.

We recommend using comma-separated files as they are less error prone and easier to read and write.

Let's inspect data/samplesheet.csv with VSCode.

Output
sample,fastq_1,fastq_2
gut,data/ggal/gut_1.fq,data/ggal/gut_2.fq

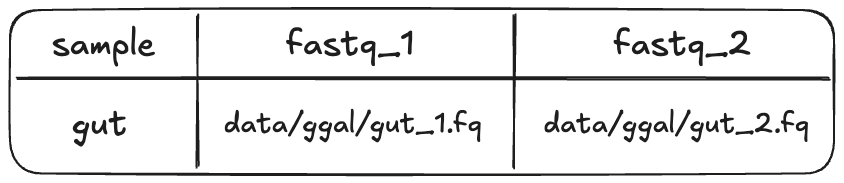

Think of this file like a table; each line is a row and within each row are multiple 'columns' delimited by comma symbols (,). This samplesheet has two rows. The first is a header row; the values here will be used as names for each of the columns. The second row is a single sample, gut. At this stage, we are developing and testing the pipeline, so, we're only working with one sample. The samplesheet has three columns:

  • sample: indicates the sample name/prefix (in this case: gut)
  • fastq_1, fastq_2: contains the relative paths to the paired read FASTQ files (in this case: data/ggal/gut_1.fq and data/ggal/gut_2.fq)

The goal in this step is to read the contents of the samplesheet, and transform it so it fits the input definition of FASTQC we just defined:

tuple val(sample_id), path(reads_1), path(reads_2)

Before that, we need to add an input parameter that points to the samplesheet, called reads.

Exercise

In your main.nf add a new input parameter called reads and assign it a default path to the samplesheet, using the $projectDir variable as before.

Solution
main.nf
// pipeline input parameters
params.transcriptome_file = "$projectDir/data/ggal/transcriptome.fa"
params.reads = "$projectDir/data/samplesheet.csv"

In the next few steps, we will add a mix of Nextflow operators and Groovy syntax to read in and parse the samplesheet so it is in the correct format for the process we just added.

Using samplesheets with Nextflow can be tricky business

There are currently no Nextflow operators specifically designed to handle samplesheets. As such, we Nextflow workflow developers have to write custom parsing logic to read and split the data. This adds complexity to our workflow development, especially when trying to handle tasks like parallel processing of samples or filtering data by sample type.

Add the following to your workflow scope below where INDEX is called:

main.nf
// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }
        .view()

}

This looks a bit complicated, but the essential idea is that we read in our samplesheet file with the .fromPath channel factory and the .splitCSV operator and transform the data into our final tuple format with the .map operator. The key takeaway here is to understand that using samplesheets is best practice for reading grouped files and metadata into Nextflow, and that both Nextflow operators and Groovy code need to be chained together to get these in the correct format.

Advanced content: A deeper look at the samplesheet logic

Our samplesheet input channel has used a few common Nextflow operators chained together:

  • .fromPath is a channel factory that creates a channel from one or more files matching a given path or pattern. In this case, this is our samplesheet .csv file contained in the params.reads parameter, provided with the --reads command line flag.
  • .splitCsv splits the input file into rows, treating it as a CSV (Comma-Separated Values) file. The header: true option means that the first row of the CSV contains column headers, which will be used to access the values by name.
  • .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] } uses the .map operator and some Groovy syntax to transform each row of the CSV file into a tuple, extracting the sample value, as well as the fastq_1 and fastq_2 file paths from the row.
  • .view() is a debugging step that outputs the transformed data to the console so we can see how the channel is structured. Its a great tool to use when building your channels.
Tip: using the view() operator for testing

The view() operator is a useful tool for debugging Nextflow workflows. It allows you to inspect the data structure of a channel at any point in the workflow, helping you to understand how the data is being processed and transformed.

Run the workflow with the -resume flag:

nextflow run main.nf -resume

Your output should look something like:

Output
Launching `main.nf` [crazy_einstein] DSL2 - revision: 0ae3776a5e

[de/fef8c4] INDEX [100%] 1 of 1, cached: 1 ✔
[gut, /home/setup2/hello-nextflow/part2/data/ggal/gut_1.fq, /home/setup2/hello-nextflow/part2/data/ggal/gut_2.fq]
Tip: using the -resume flag

The -resume flag is used to resume a Nextflow workflow from where it left off. If a workflow fails or is interrupted, this flag allows you to skip tasks that were successfully completed, saving time and computational resources. It is also useful when you are developing a workflow and want to test changes without running the entire workflow from the start.

The chain of commands produces a tuple with three elements that correspond to the row in the samplesheet. It now fits the requirements of the input definition of tuple val(sample_id), path(reads_1), path(reads_2):

[gut, /home/setup2/hello-nextflow/part2/data/ggal/gut_1.fq, /home/setup2/hello-nextflow/part2/data/ggal/gut_2.fq]

How's it going?

Once you have run the workflow, select the "Yes" react on Zoom.

Next, we need to assign the channel we create to a variable so it can be passed to the FASTQC process. Assign to a variable called reads_in, and remove the .view() operator as we now know what the output looks like.

main.nf
// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

}

Now that we have an input channel ready that provides the correct format, we can call the FASTQC process.

Exercise

In the workflow scope after where reads_in was defined, call the FASTQC process with reads_in as the input.

Solution
main.nf
// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

    // Run the fastqc step with the reads_in channel
    FASTQC(reads_in)

}

Run the workflow:

nextflow run main.nf -resume

Your output should look something like:

Launching `main.nf` [tiny_aryabhata] DSL2 - revision: 9a45f4957b

executor >  local (1)
[de/fef8c4] INDEX      [100%] 1 of 1, cached: 1 ✔
[bb/32a3aa] FASTQC (1) [100%] 1 of 1 ✔

If you inspect results/fastqc_gut_logs there is an .html and .zip file for each of the .fastq files.

Advanced exercise: Inspecting our samplesheet reader

This advanced exercise walks through inspecing the output of the intermediate operators in the reads_in channel:

  • Channel.fromPath
  • .splitCsv

The current workflow block should look like:

main.nf
// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

    // Run the fastqc step with the reads_in channel
    FASTQC(reads_in)
}

Channel.fromPath

  1. In the workflow scope, comment out the lines for .splitCsv, .map, and FASTQC()
  2. Add .view() on the line after Channel.fromPath and before the commented .splitCsv
  3. Run the workflow with -resume
Solution
main.nf
// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .view()
        //.splitCsv(header: true)
        //.map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

    // Run the fastqc step with the reads_in channel
    //FASTQC(reads_in)

}

The output of the Channel.fromPath(params.reads) step produces a path to the samplesheet:

Output
Launching `main.nf` [hungry_lalande] DSL2 - revision: 587b5b70d1

[de/fef8c4] INDEX [100%] 1 of 1, cached: 1 ✔
/home/user1/part2/data/samplesheet.csv

.splitCsv

  1. In the workflow scope, uncomment the line for .splitCsv
  2. Move .view() to the line after .splitCsv (before the commented .map line)
  3. Run the workflow with -resume
Solution
main.nf
// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)

    // Define the fastqc input channel
    reads_in = Channel.fromPath(params.reads)
        .splitCsv(header: true)
        .view()
        //.map { row -> [row.sample, file(row.fastq_1), file(row.fastq_2)] }

    // Run the fastqc step with the reads_in channel
    //FASTQC(reads_in)

}

.splitCsv takes the path from the .fromPath operator and reads the file. It outputs a queue channel with one element for each line of the CSV file. Each element of this channel is similar to a tuple, except each value is associated with its corresponding column name from the header row of the CSV file:

Output
Launching `main.nf` [tiny_yonath] DSL2 - revision: 22c2c9d28f
[de/fef8c4] INDEX | 1 of 1, cached: 1 ✔
[sample:gut, fastq_1:data/ggal/gut_1.fq, fastq_2:data/ggal/gut_2.fq]

This is called a key-value pair. Each of the values can be accessed by its key value (the column name). Our .map operator does exactly this (e.g. row.sample and row.fastq_1) and formats it into the final tuple that is stored as reads_in and passed to FASTQC.

Before proceeding, ensure to uncomment the .map and FASTQC lines, and remove .view().

Summary

In this lesson you have learned:

  1. How to implement a process with a tuple input
  2. How to construct an input channel using operators and Groovy
  3. How to use the .view() operator to inspect the structure of a channel
  4. How to use the -resume flag to skip sucessful tasks
  5. How to use a samplesheet to read in grouped samples and metadata
