2.1 Implementing a simple process with a container

Learning objectives

1. Implement a Nextflow process that takes a single file as input.
2. Understand the importance of containers in ensuring consistent and reproducible execution across processes.
3. Apply the publishDir directive to store process outputs in a specified directory.

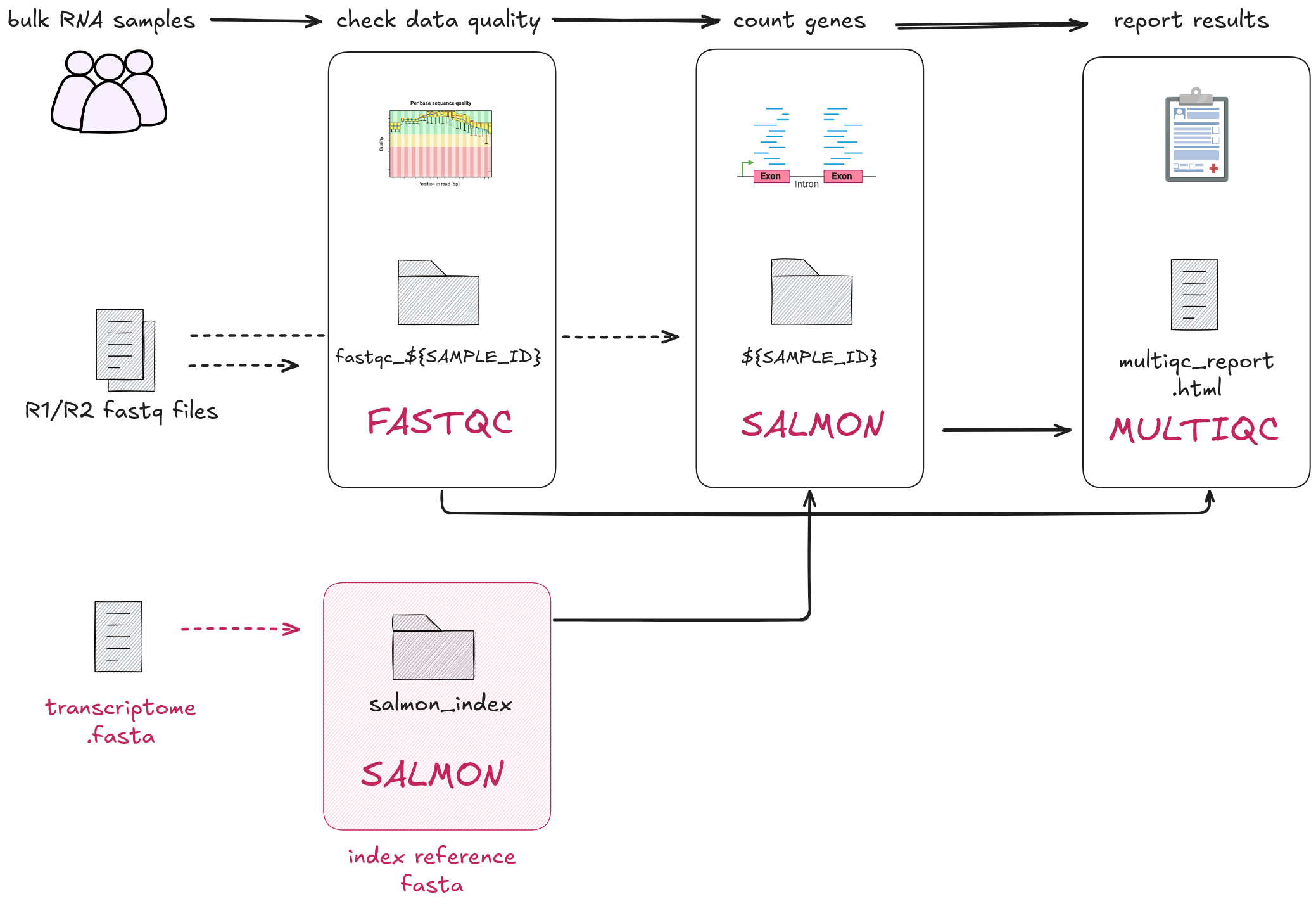

In this lesson we will be implement 00_index.sh as our first Nextflow process, INDEX. Here, we are working with the first step of the RNAseq data processing workflow: indexing the transcriptome for downstream processes. To do this, we will need to run Salmon's indexing mode.




Open the bash script 00_index.sh:

00_index.sh

mkdir "results"
salmon index \
    --transcripts data/ggal/transcriptome.fa \
    --index results/salmon_index

• The script first creates a results/ folder then runs the salmon index command.
• The Salmon --transcripts flag indicates that the path to the input transcriptome file is data/ggal/transcriptome.fa.
• The Salmon --index results/salmon_index flag tells salmon to save the output index files in a directory called salmon_index, within the newly created results directory.

Avoid hardcoding arguments by using parameters

The paths to the transcriptome file (data/ggal/transcriptome.fa) and the output directory (results/salmon_index) are hardcoded in this bash script. If you wanted to change the input transcriptome file or the output location, you must manually edit the script. This makes our scripts less flexible and easy to use.

As we will see, Nextflow addresses the issue of hardcoded paths by allowing values to be passed dynamically at runtime as parameters (params).

2.1.1 Building the INDEX process

In the empty main.nf script, add the following process scaffold with the script definition:

main.nf

process INDEX {
  [ directives ]

  input:
    < process inputs >

  output:
    < process outputs >

  script:
  """
  salmon index --transcripts $transcriptome --index salmon_index
  """
}

It contains:

• The empty input: block for us to define the input data for the process.
• The empty output: block for us to define the output data for the process.
• The script: block prefilled with the command that will be executed.

Info

The process script block is executed as a Bash script by default. In Part 2 of the workshop, we will only be using Nextflow variables within the script block.

Note how we have modified the original bash script in two ways.

First, we have replaced the hard-coded path to the transcriptome file with a Nextflow variable: $transcriptome. This will allow us to use this process to index any transcriptome FASTA file we want without having to modify the command itself.

Second, we removed the creation of a results directory and simply told Salmon to create the new index salmon_index within the current directory. The original script created a results directory as a way to organise its outputs neatly, but we don't need to worry about being so neat here; instead, as you will see below, we will use the publishDir to neatly organise our outputs.

Next, we will edit the input and output blocks to match the expected data and results for this process. Looking back at our original bash script 00_index.sh, we can see that:

• Our input is a FASTA (.fa) file, now represented by the variable $transcriptome and provided to the --transcripts flag
• The name of the index output directory, defined by using the --index flag, is called salmon_index/

Defining inputs and outputs

Remember, input and output definitions require a qualifier and name. For example:

input:
<input qualifier> <input name>

output:
<output qualifier> <output name>

The qualifier defines the type of data, and the names are treated like variables.

main.nf

process INDEX {
  [ directives ]

  input:
  path transcriptome

  output:
  path 'salmon_index'

  script:
  """
  salmon index --transcripts $transcriptome --index salmon_index
  """
}

Note that the input path transcriptome refers to a variable, meaning the actual file or directory provided as input can be changed depending on the data you provide it. The output path 'salmon_index' is fixed, meaning it will always expect an output folder called salmon_index, no matter what the input is.

This is how Nextflow can handle different inputs while always producing the same output name.

More information on using input and output blocks can be found in the Nextflow documentation for process inputs and outputs.

2.1.2 Saving our output files to an output directory with publishDir

Next we will implement the Nextflow equivalent of saving the output files into a results/ directory. Recall from Part 1 that we can use the publishDir directive to accomplish this. This will direct Nextflow to copy all of the process' outputs to a given directory.

We can also specify how Nextflow will copy our results to the publishDir directory by setting the mode. We can tell Nextflow to make a complete copy of the outputs by setting the mode to "copy", e.g.:

publishDir "results", mode: 'copy'

Advanced content: publishDir modes

The publishDir directive has several modes that change how it behaves. By default, Nextflow will create a symbolic link in the publishing directory. This is a special type of file that points to another file, similar to a shortcut. The advantage of using a symbolic link is that it doesn't require duplicating the output files, meaning it uses less space and is quick to make. The disadvantage, however, is that the actual data is still stored in the work/ directory. If you ever clean up the work/ directory, you will break the symbolic links and you will lose your data.

We will be using the "copy" mode for the remainder of this workshop, which tells Nextflow to make a complete copy of the data within the publishing directory, thereby ensuring that the final outputs of the pipeline are always available there.

The other modes that are available are described in detail in the Nextflow documentation.

Replace the [ directives ] placeholder in your main.nf script with the publishDir directive, specifying the directory name as "results" and the mode as 'copy'. Your main.nf should look like this:

main.nf

process INDEX {
  publishDir "results", mode: 'copy'

  input:
  path transcriptome

  output:
  path 'salmon_index'

  script:
  """
  salmon index --transcripts $transcriptome --index salmon_index
  """
}

This process is now directed to copy all output files (i.e. the salmon_index directory) into a results/ directory. This saves having to specify the output directory in the script definition each process, or a tedious mv salmon_index/ results/ step.

Nextflow also handles whether the directory already exists or if it should be created. In the 00_index.sh script you had to manually make a results directory with mkdir -p "results.

More information and other modes can be found on publishDir.

2.1.3 Adding params and the workflow scope

Now that you have written your first Nextflow process, we need to prepare it for execution.

You can think of Nextflow processes as similar to a function definition in R or Python. We have defined what the process should do, but to actually run it, we need to call the process within the workflow and pass in the inputs.

To run the process, we need to call it inside the workflow{} block, where we control how data flows through the pipeline. To provide the input data we need to define parameters.

In the 00_index.sh script, the file data/ggal/transcriptome.fa was passed as the input into salmon index.

We will pass in this file path with the params scope. Add the following to the top of your main.nf script:

main.nf

// pipeline input parameters
params.transcriptome_file = "$projectDir/data/ggal/transcriptome.fa"

Implicit variables in Nextflow

Nextflow provides a set of implicit variables that can be used in your workflows. These variables are predefined and can be used to access information about the workflow environment, configuration, and tasks.

We will use $projectDir to indicate the directory of the main.nf script. This is defined by Nextflow as the directory where the main.nf script is located.

The params and process names do not need to match!

In the INDEX process, we defined the input as a path called transcriptome, whereas the parameter is called transcriptome_file. These do not need to be identical names as they are called in different scopes (the INDEX process scope, and workflow scope, respectively).

Recall that parameters are inputs and options that can be customised when the workflow is executed. They allow you to control things like file paths and options for tools without changing the process code itself.

We defined a default value for params.transcriptome_file in the main.nf script. If we need to run our pipeline with a different transcriptome file, we can overwrite this default in our execution command with --transcriptome_file double hyphen flag.

Next, add the workflow scope at the bottom of your main.nf after the process:

main.nf

// Define the workflow
workflow {

    // Run the index step with the transcriptome parameter
    INDEX(params.transcriptome_file)
}

This will tell Nextflow to run the INDEX process with params.transcriptome_file as input.

Tip: Your own comments

As a developer you can to choose how and where to comment your code! Feel free to modify or add to the provided comments to record useful information about the code you are writing.

Exercise

Now that we have a complete process and workflow, we should be able to run it!

In your VSCode terminal, ensure you are inside the part2/ directory, then run the following:

nextflow run main.nf

What happened? Did the pipeline run successfully? If not, why not?

Solution

Something went wrong! The pipeline didn't successfully run!

You should have received an error message similar to the following:

Output

 N E X T F L O W   ~  version 24.10.2

Launching `main.nf` [peaceful_neumann] DSL2 - revision: caa2043bdf

executor >  local (1)
executor >  local (1)
[eb/ec6173] process > INDEX [100%] 1 of 1, failed: 1 ✘
ERROR ~ Error executing process > 'INDEX'

Caused by:
Process `INDEX` terminated with an error exit status (127)


Command executed:

salmon index --transcripts transcriptome.fa --index salmon_index

Command exit status:
127

Command output:
(empty)

Command error:
.command.sh: line 2: salmon: command not found

Work dir:
/home/training/_part2/work/eb/ec617307600cd47fc5b65d1c60269e

Tip: you can try to figure out what's wrong by changing to the process work dir and showing the script file named `.command.sh`

-- Check '.nextflow.log' file for details

Nextflow's error message tells us exactly why this failed. The highlighted line above tells us that the salmon command couldn't be found.

Why did this happen? Because we don't have salmon installed!

How do we fix this? We'll explore that in the very next section...

2.1.4 Using containers for reproducible pipelines

One of the primary goals of workflow managers like Nextflow is to improve the portability of a pipeline. Ideally, we could take our pipeline to any computer and it would run with minimal setup - in short, "write once, run anywere".

However, all but the most trivial workflows will require specialised software that can't be assumed to be installed on any given computer. To ensure that the pipeline requires "minimal setup", we can't be asking the end users to install every piece of software the pipeline requires. So how can we ensure that the end user can run our pipeline without needing to install all of its dependencies?

The answer is containers.

Containers package all the software and dependencies needed for each tool into a self-contained environment. This means you don’t have to manually install anything on your system, and your workflow will work consistently across different systems — whether you're running it on your local machine, a cluster, or in the cloud. Containers make it easier to share your workflow with others and ensure it runs the same way every time, no matter where it's executed.

Nextflow recommends as a best practice to use containers to ensure the reproducibility and portability of your workflows.

Nextflow supports multiple container runtimes. In this workshop, we'll be demonstrating the value containers can bring to your workflow by using Singularity.

Tip: different tools for different purposes

In this workshop, we're using Singularity to run containers. You may have heard of another container technology before: Docker. Both Singularity and Docker work in similar ways to encapuslate tools within an environment to ensure reproducibility. However, Docker has certain administrative access requirements that make it unsuitable for some systems like HPCs. For this reason, we will be working with Singularity.

You don't have to write your own containers to run in your workflow. There are many container repositories out there. We highly recommend using Biocontainers wherever possible. Biocontainers are pre-built and tested containers specifically for bioinformatics tools. They have a huge library and great community support.

You can find Biocontainers at the following repositories:

• Biocontainers registry
• Quay.io
• DockerHub
• Seqera containers

Another helpful fact is that Docker containers are often able to be converted to Singularity's format, meaning if a tool is only available as a Docker image, it is highly likely that it can still be used with Singularity.

In Nextflow, we can specify that a process should be run within a specified container using the container directive.

Add the following container directive to the INDEX process, above publishDir:

main.nf

process INDEX {
    container "quay.io/biocontainers/salmon:1.10.1--h7e5ed60_0"
    publishDir "results", mode: 'copy'

    input:
    path transcriptome

    output:
    path 'salmon_index'

    script:
    """
    salmon index --transcripts $transcriptome --index salmon_index
    """
}

Tip

Usually, containers need to be downloaded using a command such as singularity pull [image]. All containers have been previously downloaded for the workshop beforehand.

Tip: use one container per process

Using single containers for each process in your workflow is considered best practices for the following reasons:

• Flexibility: different processes require different tools (or versions). By using separate containers, you can easily tailor the container to the needs of each process without conflicts.
• Build and run efficiency: Smaller, process-specific containers are faster to load and run compared to one large container that has unnecessary tools or dependencies for every process.
• Easier Maintenance: it’s easier to update or modify one container for a specific process than to manage a large, complex container with many tools.
• Reproducibility: reduces the risk of issues caused by software conflicts.

Now our process has a container associated with it, but before we can run the workflow, we need to tell Nextflow how to run the container. Specifically, we need to specify that we want to run containers using Singularity. Note that this also requires Singularity to be installed on your system in order for this to work. Singularity has been pre-installed on your Virtual Machine. See the Nextflow documentation for further details on running workflows with Singularity.

We can configure Nextflow to run containers with Singularity by using the nextflow.config file.

Create a nextflow.config file in the same directory as main.nf.

Note

You can create the file via the VSCode Explorer (left sidebar) or in the terminal with a text editor.

If you are using the Explorer, right click on part2 in the sidebar and select "New file".

Add the following lines to your config file:

singularity {
    enabled = true
    cacheDir = "$HOME/singularity_image"
}

The syntax singularity { } defines the configuration for using Singularity; everything between the curly braces here will tell Nextflow how to use Singularity to run your workflow.

The first line, enabled = true simply tells Nextflow to use Singularity. The second line, cacheDir = $HOME/singularity_image tells Nextflow to store images in a folder within your home directory called singularity_image. This means that Nextflow only has to pull a given image from the internet once; every other time it requires that image, it can quickly load it from this cache directory.

You have now configured Nextflow to run your process within a Singularity container! In this case, the INDEX process will use the quay.io/biocontainers/salmon:1.10.1--h7e5ed60_0 container. As we add more processes, wherever we define the container directive, Nextflow will use that container to run that process.

Tip

Remember to save your files after editing them!

We now have a complete process and workflow, along with directives and configuration for using containers. We are ready to try running our workflow again!

2.1.5 Running the workflow

In the terminal, run the command:

nextflow run main.nf

Your output should look something like:

Output

N E X T F L O W   ~  version 24.10.2

Launching `main.nf` [chaotic_jones] DSL2 - revision: 6597720332

executor >  local (1)
[de/fef8c4] INDEX | 1 of 1 ✔

Recall that the specifics of the output are randomly generated (i.e. [chaotic_jones] and [de/fef8c4] in this example).

In this example, the output files for the INDEX process is output in work/de/fef8c4....

You have successfully run your first workflow!

2.1.6 Inspecting the outputs

You will notice that we have two new folders in our working directory: results/ and work/.

First, let's look at the results/ directory. It should contain a single subdirectory: salmon_index/. Inside are all the files that make up the salmon reference index used for quantifying reads.

ls results

Output

salmon_index

ls results/salmon_index

Output

complete_ref_lens.bin   mphf.bin             ref_indexing.log
ctable.bin              pos.bin              reflengths.bin
ctg_offsets.bin         pre_indexing.log     refseq.bin
duplicate_clusters.tsv  rank.bin             seq.bin
info.json               refAccumLengths.bin  versionInfo.json

This is the exact same directory structure that our original 00_index.sh script was creating when running mkdir "results" and passing the --index results/salmon_index parameter to salmon. But now, Nextflow is handling this for us thanks to the publishDir directive we gave to the INDEX process. That directive told Nextflow to create the results/ directory (if it didn't already exist) and copy the salmon_index output into it.

The other directory that has been created is work/. This is where Nextflow runs all of our processes and stores all of their associated files. Understanding how the work/ directory is organised can be very useful for debugging and diagnosing problems with your processes.

You may recall from Part 1.3, every time a process is run, it is given a randomly-generated ID, such as ec/9ed7c7d13ca353bbd8e99835de8c47. This helps Nextflow uniquely identify each instance of every process. You will see a truncated form of this ID printed to the terminal when running Nextflow:

Nextflow output

    N E X T F L O W   ~  version 24.10.2

Launching `main.nf` [sleepy_volhard] DSL2 - revision: c2ada21e4e

executor >  local (1)
[ec/9ed7c7] process > INDEX [100%] 1 of 1 ✔

Nextflow creates a directory inside work/ with this same path for each instance of every process. Inside will be the output of that process as well as copies of its inputs:

ls work/ec/9ed7c7d13ca353bbd8e99835de8c47  # Your work directory will have a different name

Output

salmon_index  transcriptome.fa

There will also be several hidden files that Nextflow uses to run and monitor the process:

ls -A work/ec/9ed7c7d13ca353bbd8e99835de8c47  # Your work directory will have a different name

Output

.command.begin  .command.out  .exitcode
.command.err    .command.run  salmon_index
.command.log    .command.sh   transcriptome.fa

Of particular interest to us right now is the .command.sh file, which contains our process script.

Exercises

1. Navigate to the work/ directory and open the .command.sh file.
2. Compare the .command.sh file with our INDEX process. How do they differ? How are they similar?

Solution

The command in .command.sh should look very similar to the script block in the INDEX process, except now the Nextflow variable $transcriptome has been replaced by a relative path to the transcriptome.fa file present in the working directory:

main.nf

process INDEX {
    ...

    script:
    """
    salmon index -t $transcriptome -i salmon_index
    """
}

.command.sh

#!/bin/bash -ue
salmon index -t transcriptome.fa -i salmon_index

3. How does .command.sh compare to the original 00_index.sh script?

Solution

The .command.sh script contains a hard-coded path to the copy of the transcriptome.fa file within the task directory, which closely resembles our hard-coded salmon command in our original 00_index.sh script:

00_index.sh

salmon index \
    --transcripts data/ggal/transcriptome.fa \
    --index results/salmon_index

.command.sh

#!/bin/bash -ue
salmon index -t transcriptome.fa -i salmon_index

In a sense, Nextflow is doing the same thing we would have had to do with our original set of bash scripts: make a copy, modify the hard-coded values, and run them. Except now, it is all being automated and handled for us by Nextflow!

Advanced content: the work/ directory hidden files

The other hidden files inside the work directory have the following roles:

• .command.run: A "wrapper script" that contains all the behind-the-scenes logic to run and monitor .command.sh.
• .command.out: The standard output log from .command.sh.
• .command.err: The standard error log from .command.sh.
• .command.log: The output log generated by the .command.run wrapper script.
• .command.begin: A file created as soon as the job is launched.
• .exitcode: A file created at the end of the job containing the task exit code (0 if successful)

Summary

In this lesson you have learned:

1. How to implement a simple process with one input file
2. How to define parameters in your workflow scripts and the command line
3. How to use configure a process to run using a container
4. How to output files in a dedicated publishDir
