1.5 Inputs and Channels

Learning objectives

  1. Describe the differences between Nextflow channel types
  2. Apply input blocks in process definitions
  3. Create channels using channel factories such as Channel.of()
  4. Implement process calls that take single and multiple inputs via channels
  5. Evaluate correct vs incorrect input strategies (e.g. why not to use publishDir as an input)

So far, you've been emitting a text string ('Hello World!') that has been hardcoded into the script block. In a more realistic situation, you might want to pass a variable input to your script, much like you pass files to command line tools for analysis.

Here you're going to to add some flexibility by introducing channels to your workflow and an input definition to your SAYHELLO process.

1.5.1 Passing information through channels

In Nextflow, processes primarily communicate through channels. Channels are essentially the 'pipes' of our pipeline, providing a way for data to flow between our processes and defining the overall structure of the workflow.

Channels allow us to handle inputs efficiently by defining which data should be taken from one step to another. Channels are one of Nextflows key features that allow us to run jobs in parallel, as well as many other benefits.

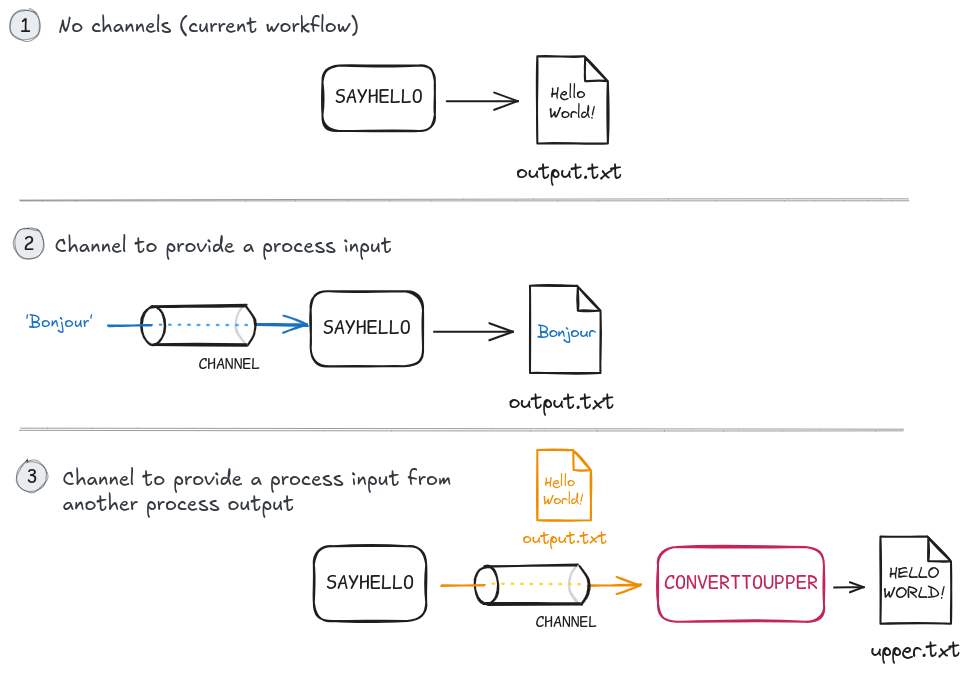

This image illustrates a few use cases of channels that we will implement:

  • 1 shows our current hello-world.nf pipeline where the SAYHELLO process always prints a file called output.txt that contains Hello World!
  • 2 shows how you can provide a text input to a process, via a channel, to change what is redirected into output.txt. In this example, 'Hello World!' is replaced with 'Bonjour'.
  • 3 shows how to use the output of a process (SAYHELLO) as the input of another process. The CONVERTUPPER process replaces all lower case characters in output.txt to uppercase, and saves it to a different file called upper.txt.

There are two kinds of channels: queue channels and value channels.

Queue channels

Queue channels are the more common type of channel. It holds a series, or queue, of values and passes them into a process one at a time. Values you can expect in a queue channel can be file paths, or values such as strings and numbers. Generally, a queue channel contains values of the same type.

One important behaviour of queue channels is that the order of the values is non-deterministic. You will not know ahead of time the order of values within the queue due to it's 'first-in, first-out' (FIFO) nature. More on this in the following sections.

A value in a queue channel can only be used (run) once in a process.

Value channels

Value channels, as their name suggests, simply store a value. Importantly:

  • Value channels can be bound (i.e. assigned) with one and only one value.
  • The assigned value can be used multiple times.

When a value channel is passed as an input to a process, its value will be used for every run of that process.

1.5.2 Creating channels

Channels are created in one of two ways. The first is as outputs of processes. Each entry in the output block of a process creates a separate channel that can be accessed with <process_name>.out - or, in the case of named outputs, with <process_name>.out.output_name.

The other way to create channels is with special functions called channel factories. There are numerous types of channel factories which can be utilised for creating different channel types and data types. The most common channel factories you will use are:

  • Channel.of()
  • Channel.fromPath()
  • Channel.fromFilePairs().

The latter two are fairly self explanatory, creating channels of file paths and pairs of file paths, respectively. The Channel.of() factory is a much more generic method used to create a channel of whatever values are passed to it.

For example, an exercise we will be working through is to create a channel called greeting_ch that contains three values - 'Hello World!', 'Bonjour le monde!', 'Holà mundo':

greeting_ch = Channel.of('Hello world!', 'Bonjour le monde!', 'Holà mundo')

A process consuming this channel would run three times - once for each value.

1.5.3 Adding channels to our pipeline

You're going to start by creating a channel with the Channel.of() channel factory that will contain your greeting.

Note

You can build different kinds of channels depending on the shape of the input data.

Channels need to be created within the workflow definition.

Exercise

Create a channel named greeting_ch with the 'Hello World!' greeting. Create greeting_ch before the process that runs it.

Solution
hello-world.nf
workflow {

    // Create a channel for inputs
    greeting_ch = Channel.of('Hello world!')

    // Emit a greeting
    SAYHELLO()
}

1.5.4 Adding channels as process inputs

Before greeting_ch can be passed to the SAYHELLO process as an input, you must first add an input block in the process definition.

The inputs in the input block, much like the output block, must have a qualifier and a name:

input:
<input qualifier> <input name>

Input names can be treated like a variable, and while the name is arbitrary, it should be recognisable.

No quote marks are needed for variable inputs. For example:

input:
val greeting

Similar to the output qualifiers discussed in the previous chapter, there are several different input qualifiers, with some of the more common ones being:

  • val: A value, such as a string or number.
  • path: A file path.

Exercise

Add an input block to the SAYHELLO process with an input value. Update the comment at the same time.

Solution
hello-world.nf
// Use echo to print a string and redirect to output.txt
process SAYHELLO {
    publishDir 'results'

    input:
    val greeting

    output:
    path 'output.txt'

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

The SAYHELLO process is now expecting an input value.

The greeting_ch channel can now be supplied to the SAYHELLO() process within the workflow block:

SAYHELLO(greeting_ch)

Without this, Nextflow will throw an error.

Exercise

Add the greeting_ch as an input for the SAYHELLO process.

Solution
hello-world.nf
workflow {

    // Create a channel for inputs
    greeting_ch = Channel.of('Hello world!')

    // Emit a greeting
    SAYHELLO(greeting_ch)
}

1.5.5 Using Nextflow variables within scripts

The final piece is to update the script block to use the input value.

Each input can be accessed as a variable via the name in its definition. Within the script block, this is done by prepending a $ character to the input name:

script:
"""
echo '$greeting' > output.txt
"""

The ' quotes around $greeting are required by the echo command to treat the greeting as a single string.

Exercises

  1. Update hello-world.nf to use the greeting input.
Solution
hello-world.nf
// Use echo to print 'Hello World!' and redirect to output.txt
process SAYHELLO {
    publishDir 'results'

    input:
    val greeting

    output:
    path 'output.txt'

    script:
    """
    echo '$greeting' > output.txt
    """
}

workflow {

    // Create a channel for inputs
    greeting_ch = Channel.of('Hello world!')

    // Emit a greeting
    SAYHELLO(greeting_ch)
}

  1. Save, and run the pipeline (nextflow run hello-world.nf). Inspect results/output.txt.

Solution

cat results/output.txt
Output.txt
Hello World!

The process will still function the same and produce the same output, but instead takes the values in greeting_ch ('Hello World!') as input.

Note

Similar to the output block in a process, the input does not determine the input of process. Recall that it simply declares what input should be expected based on the logic in side the script block.

Yes! Your pipeline now uses an input channel!

1.5.6 Running processes on multiple inputs

Now that we have a channel set up and our process has been reworked to use it, we can very easily start feeding more inputs into the channel and watch SAYHELLO run on each one.

The Channel.of() factory can take any number of values, separated by commas. Each one will become a separate element in the queue channel. Any process consuming that channel will run once for every element; each run will be separate and in parallel to the rest.

Exercise

Add additional greetings to greeting_ch.

Solution
hello-world.nf
workflow {

    // Create a channel for inputs
    greeting_ch = Channel.of('Hello world!', 'Bonjour le monde!', 'Holà mundo')

    // Emit a greeting
    SAYHELLO(greeting_ch)
}

If you now run the workflow again, you should see that SAYHELLO runs three times:

Launching `main.nf` [curious_hugle] DSL2 - revision: 243f7816c2

executor >  local (3)
[27/ed09aa] SAYHELLO (1) [100%] 3 of 3 ✔

Notice that by default Nextflow only prints out one line per process rather than one line per run of each process. Sometimes it may be useful to you to have it print out each run on a separate line. To do this, you can add the -ansi-log false flag to the command line:

nextflow run hello-world.nf -ansi-log false

The output now looks like:

Launching `main.nf` [deadly_wilson] DSL2 - revision: 243f7816c2
[f2/84d334] Submitted process > SAYHELLO (2)
[f4/9f72e1] Submitted process > SAYHELLO (1)
[dc/52fa3d] Submitted process > SAYHELLO (3)

There is only one output.txt in our results/ folder. This is because we have hardcoded the output name. Each time the process is run, it overwrites the existing output.txt and the one we see is from the last process that was run.

Note

If you inspect your output.txt, it can contain any one of the greetings specified. This is because the order that tasks are run are non-deterministic. Nextflow tasks run on a FIFO (first-in, first-out) basis, meaning that a task will begin running once it is ready. Different factors can impact this, but a common scenario is when the output of a process is ready, the downstream process that uses it as input will be exectuted.

1.5.7 A note about multiple input channels

The input block can be used to define multiple inputs to the process. Importantly, the number of inputs passed to the process call within the workflow must match the number of inputs defined in the process. For example:

example.nf
process MYFUNCTION {
    publishDir 'results'

    input:
    val input_1
    val input_2

    output:
    path 'output.txt'

    script:
    """
    echo $input_1 $input_2 > output.txt
    """
}

workflow {
    MYFUNCTION('Hello', 'World!')
}

If we view the file:

cat output.txt
Output
Hello World!

The main caveat when using multiple input channels is that the order of values and files can be unpredictable (non-deterministic). The best practice here is to apply a combination of operators to combine the multiple channels. Nextflow's processes documentation has an overview of how it works, and recommendations when it should be used in your own pipelines.

1.5.8 FAQ: Can I use the publishDir as an input to a process?

A common question about Nextflow is whether the publishDir can be used as an input to processes. This can sometimes seem like an attractive and useful pattern. For example, you may have several processes generating outputs that need to get collated or summarised in some way at the end of your workflow. If each process puts its final output in the publishDir directory, then the final summary process can simply look there for all its inputs.

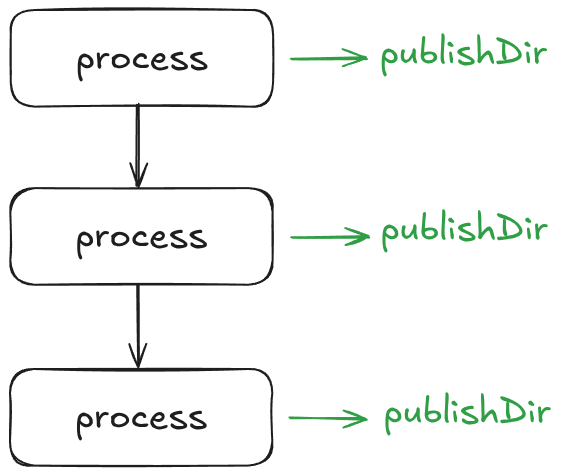

Unfortunately, this is not good practice, and will very likely either lead to inconsistent results or not work at all. publishDir is not really part of the workflow itself; it's more like a "side branch" to the pipeline that acts as a convenient place to put important outputs of the workflow. There are no guarantees about when output files will get copied into publishDir, and Nextflow won't know to wait for files to be generated inside before running processes that rely on them.

Don't use publishDir as an input!

Ultimately, all processes should be working with channels as their inputs, and publishDir should only be used as a final output directory.

Summary

Channels are one of Nextflow's most powerful features by allowing data to flow into, and between processes. In this lesson, we:

  1. Created a queue channel
  2. Used the val input qualifer to provide a string input
  3. Modified the SAYHELLO() process to use a channel instead of hardcoded strings
  4. Ran a process with multiple values
  5. Learnt the risks of using publishDir as a source of input (not recommended)
