1.3 Writing your first pipeline

Learning objectives

1. Understand the structure and purpose of process and workflow blocks in Nextflow scripts
2. Understand how to define a simple process using script and output blocks
3. Create a complete, single-step Nextflow pipeline
4. Evaluate script readability using comments

Workflow languages, such as Nextflow, provide a structured way of managing multi-step analyses. Workflow languages can help you coordinate individual tasks, handle dependencies, enable parallel execution, and improve reproducibility. They also make your code easier to maintain and share with others.

Here, you're going to learn more about the Nextflow language and take your first steps making your first pipeline with Nextflow.

1.3.1 Understanding the process and workflow scopes

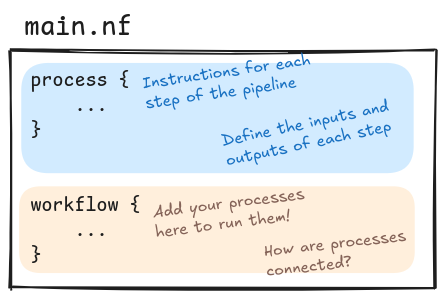

Nextflow pipelines are written inside .nf files. They consist of a combination of two main components: processes and the workflow itself. Each process describes a single step of the pipeline, including its inputs and expected outputs, as well as the code to run it. The workflow then defines the logic that puts all of the processes together.

process

A process definition starts with the keyword process, followed by a process name, and finally the process body delimited by curly braces. The process body must contain a script block. The script block contains the command and logic that will be executed.

A process may contain any of the following definition blocks. The ones we will be focusing on this workshop are presented in bold: directives, input, output, stub, when clauses, and of course, script.

process < name > {
  [ directives ]

  input:
    < process inputs >

  output:
    < process outputs >

  script:
  """
  <script to be executed>
  """
}

workflow

A workflow is a composition of processes and dataflow logic.

The workflow definition starts with the keyword workflow, followed by an optional name, and finally the workflow body delimited by curly braces.

workflow {
    < processes to be executed >
}

Tip

The process and workflow definitions are analogous to functions in R or Python languages. You first have to define a function (the process) that contains the instructions of what to do. In order to do the action, the function needs to be called (in the workflow).

Let's review the structure of hello-world.nf, a toy example you will be developing and executing in Part 1.

process SAYHELLO {

    output:
    path 'output.txt'

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

workflow {
    SAYHELLO()
}

The first piece of code (lines 1-11) describes a process called SAYHELLO with two definition blocks:

• output: defines that the process will output a file called output.txt. It also contains the path qualifier. We will review this in the next section.
• script: the echo 'Hello World!' command redirects to a file called output.txt

The second block of code (12-14) lines describes the workflow itself, which consists of one call to the SAYHELLO process.

We will start building the hello-world.nf script, piece-by-piece, so you can get a feel for the requirements for a writing a Nextflow workflow.

The order of steps taken to build the process in the following exercises are intentional. We will be building processes by defining each process block starting with the script then the output. In later sections, we will add input and process directives to this order.

This order is not prescriptive, however, the script logic often determines how the other process blocks should look like and this order can be helpful for breaking down building processes in a logical way. This approach will be continued in Part 2, when you build an RNAseq workflow!

Exercises

1. Create a new file hello-world.nf.

2. In the new file, define an empty process and call it SAYHELLO.

Solution

hello-world.nf

process SAYHELLO {

}

3. Add the script definition that writes 'Hello World!' to a file called output.txt.

Solution

hello-world.nf

process SAYHELLO {

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

1.3.2 Commenting your code

Before we complete our process, we will comment our code. Commenting your code is important so we, and others, can easily understand what the code is doing (you will thank yourself later).

In Nextflow, a single line comment can be added by prepending it with two forward slash (//):

// This is my comment

Similarly, multi-line comments can be added using the following format:

/*
 *  This is my
 *  multi-line
 *  comment
 */

As a developer you can to choose how and where to comment your code.

Exercise

Add a comment to the pipeline to describe what the process block is doing. You can use the comments provided in the solutions, however we highly recommend writing your own comment that is useful for your understanding.

Solution

The solution may look something like this:

hello-world.nf

/*
 * Use echo to print 'Hello World!'
 * to a text file
 */
process SAYHELLO {

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

Or this:

hello-world.nf

// Use echo to print 'Hello World!' to a text file
process SAYHELLO {

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

As a developer, you get to choose!

1.3.3 Capturing process outputs

In the previous section, you have defined the script - what the SAYHELLO process should do. We also need to tell Nextflow to expect this output file - otherwise, it will ignore it!

We declare outputs using the output definition block. Typically this will require both an output qualifier and an output name:

output:
<output qualifier> <output name>

Output qualifiers are keywords used inside processes to tell Nextflow what type of output to expect (e.g. a folder, file, or value).

Common output qualifiers include path and val:

• path: Emit a file produced by the process with the specified name
• val: Emit the variable with the specified name

path

For example, the syntax path "output.txt" tells Nextflow that the process outputs a file called output.txt. Nextflow can then track that file and pass it correctly to any downstream processes that need it.

val

If you attempt to use the output val "output.txt", it will outputs the literal string "output.txt". Any downstream process that expects a file won't be able to do anything with this and will fail. The val output is useful for keeping track of metadata across steps. We will explore this more in Part 2.

See the Nextflow documentation for a full list of output qualifiers.

Warning

Qualifiers don't only indicate the type of file, but it's an important part of telling Nextflow processes how this information should be handled. If you set the wrong qualifier, the pipeline will likely throw errors.

The output name is a name given to the output variable. This can be whatever you want it to be, however, the output name and the file generated by the script must match, or else Nextflow won't find it and will throw an error.

Note

It's important to remember that the output block doesn't create the output, it just tells Nextflow what to expect after the process runs. Whether or not that output actually exists depends on what your script does inside the script block. If your script doesn't create the file, Nextflow won't find it and will assume the process has failed. This is helpful because:

• Nextflow checks that the declared output is actually there. If it's missing it knows something went wrong;
• Nextflow uses outputs to connect processes together, it waits for the output before moving to the next step.

Exercise

In your SAYHELLO process, add an output block that captures 'output.txt'. Since it is a file being emitted by the process, the path qualifier must be used.

Solution

hello-world.nf

// Use echo to print 'Hello World!' to a text file
process SAYHELLO {

    output:
    path 'output.txt'

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

This example is brittle because the output filename is hardcoded in two separate places (the script and the output definition blocks). If you change one but not the other, the script will break because they need to match. We will review how to solve this in the Dynamic Naming lesson.

In addition, this process does not require an input block as the contents are predefined in the script block logic. We will explore input blocks in the following lessons.

You have now defined your first process!

1.3.4 Calling the process in the workflow scope

We have now defined a functional process for SAYHELLO. To ensure that it runs, you need to call the process in the workflow scope. Recall that the process is analagous to a function that we need to instruct to run in workflow.

Exercise

1. At the bottom of your main.nf script, after the SAYHELLO process, define an empty workflow scope:

Solution

hello-world.nf

// Use echo to print 'Hello World!' and redirect to output.txt
process SAYHELLO {

    output:
    path 'output.txt'

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

workflow {

}

2. Add the process call by adding SAYHELLO() inside workflow {}.

Solution

hello-world.nf

// Use echo to print 'Hello World!' and redirect to output.txt
process SAYHELLO {

    output:
    path 'output.txt'

    script:
    """
    echo 'Hello World!' > output.txt
    """
}

workflow {
    // Emit a greeting
    SAYHELLO()
}

Note, that we did not include any arguments to SAYHELLO(). This is because the process does not take any inputs.

Yay! You have just written your first pipeline!

In the next step, we will run the pipeline and inspect the outputs of our workflow.

Summary

This lesson introduced the Nextflow scripting language and walked you through:

1. Defining a simple process using script and output blocks
2. Understanding how the workflow scope will trigger execution
3. Adding single or multi-line comments
4. Using output qualifiers like path vs. val
5. Understanding the consistency between the output declaration and the actual files produced
